group namePanelView Plus 400
Min Order1 piece
brand nameVICPAS
model2711P-K4C3D
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
update timeFri, 01 Nov 2024 07:27:03 GMT
Brand Allen Bradley
Warranty 365 Days
Product Line PanelView Plus 400
Size 3.8 Inch
Supply PanelView Plus 400 Keypad LCD HMI Case
Parts 2711P-K4C3D Membrane Keypad LCD Shell
Min Order1 piece
Order each part separately is available

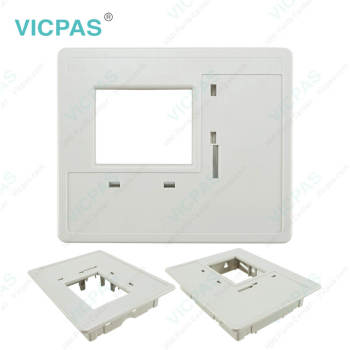

VICPAS supply Panelview Plus 400 2711P-K4C3D membrane keypad switch lcd screen plastic case Protection Board Mounting Levers Gasket Label Sticker for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.
The 2711P-K4C3D Allen Bradley PanelView Plus 400 Operator Interface Standard Model is a touchscreen input module, with a display size of 3.5 inches diagonally, with a 320 x 240 resolution, a TFT Color Display, 24 Volt DC Power, Version 3.20 through 5.10 firmware, and FactoryTalk View Machine Edition software. The Allen-Bradley PanelView Plus 400 Standard is a human interface module provided with a visual and control interface via 3.5 inch TFT Liquid Crystal Display (LCD) color screen with analog resistive touch and an anti-glare display surface. The 320 x 240 resolution of the native TFT Liquid Crystal Display has a viewing area of 71 x 53 millimeters. The 2711P-K4C3D has a display luminance of 200 nits and a built-in clock for real-time backup with an accuracy of +/-2 minutes per month. The Backup battery life has a four-year lifespan.
The 2711P-K4C3D PanelView Plus 400 can store applications in its external 512-MB Compact Flash memory and 10 MB nonvolatile memory. The device is also equipped with a single USB port and an RS-232 serial port for controller communication and input data devices. The PanelView Plus 400 Operator Interface runs on Version 3.20 to 5.10 firmware and FactoryTalk View Machine Edition software. The PanelView Plus 400 Operator Interface runs on DC power and has an operating voltage range from 18 to 30 Volts DC, with a maximum power consumption of 25 Watts at 1.0A for 24 Volts DC. Its operational temperature ranges between 0 and 55 degrees Celsius at 5 to 95%. The Panel dissipates 85 BTU/hour of its maximum heat when operational. The 2711P-K4C3D PanelView Plus 400 weighs approximately 0.562 kilograms (1.24 pounds), and it has net dimensions of 152 x 185 x 90 millimeters (6.0 x 7.28 x 3.54 inches).
The table below describes the parameters of the 2711P-K4C3D PanelView Plus 400 membrane keyboard keypad switch.
Part Number : | 2711P-K4C3D |
Product Line: | PanelView Plus 400 |
Screen diagonal | 3.5 in |
Warranty: | 180 Days Warranty |
Input Power | 24 VDC |
Display Color | Color |
Input Power | AC |
Input Type: | Keypad |
Communication: | Remote I/O and RS-232 Printer Port |
Software | FactoryTalk View ME |
Related PanelView Plus 400 Series Part No. :
PanelView Plus 400 | Description | Inventory status |
2711P-K4C20A | PanelView Plus 400 Protection Board Terminals Keypad LCD Display HMI Case | In Stock |
2711P-K4C20D | PanelView Plus 400 Membrane keypad Switch Protection Board LCD Screen Plastic Case | In Stock |
2711P-K4C3A | PanelView Plus 400 Keypad Switch LCD Display Screen Protection Board Plastic Shell | Available Now |
2711P-K4C3D | PanelView Plus 400 Keypad LCD Display Panel Enclosure Protection Board Repair | In Stock |
2711P-K4C5A | PanelView Plus 400 Protection Board Membrane Keypad Switch LCD Display HMI Case | Available Now |
2711P-K4C5D | PanelView Plus 400 Membrane Keypad Protection Board LCD Display Screen Plastic Case | In Stock |
2711P-K4M20A | PanelView Plus 400 Terminals Keypad Protection Board LCD Display Panel Plastic Shell | In Stock |
2711P-K4M20D | PanelView Plus 400 Membrane Keyboard LCD Display Protection Board Plastic Case | In Stock |
2711P-K4M3A |
PanelView Plus 400 Keypad Switch LCD Screen Housing Protection Board Repair |
Available Now |
2711P-K4M3D | PanelView Plus 400 Protection Board Keyboard LCD Display Plastic Case Replacement | In Stock |
2711P-K4M5A | PanelView Plus 400 Membrane Keypad Protection Board LCD Display Panel Housing | Available Now |
2711P-K4M5D | PanelView Plus 400 Terminal Keypad Switch LCD Screen Protection Board Enclosure | In Stock |
PanelView Plus 400 | Description | Inventory status |
