B&R 4P3040.00-K21 Membrane Keypad Switch
group namePower Panel 15/21/35/41/45
-
Min Order1 piece
brand nameVICPAS
model4P3040.00-K21
payment methodWestern Union, T/T, PayPal, Credit Card
-
update timeFri, 24 May 2024 04:07:24 GMT
Paramtents
Brand B&R
Size 5.7 inch
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Warranty 1 Year VICPAS Warranty
Model B&R Power Panel 41 4P3040.00-K21
Packging & Delivery
Min Order1 piece
Briefing
Detailed

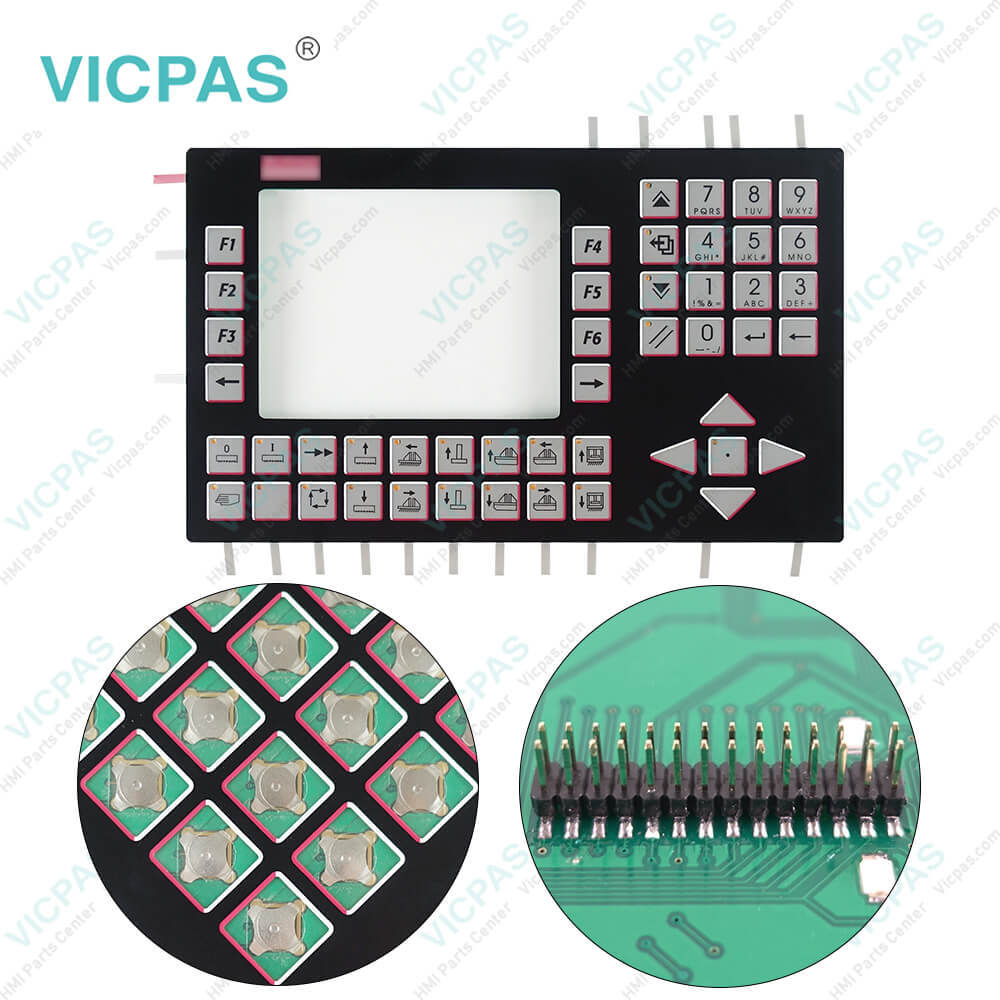

B&R Power Panel 41 4P3040.00-K21 Operator Panel Keypad Repair Replacement
Order each part separately is available
B&R Power Panel 41 Features
• 24 VDC supply voltage
• RS232 interface
• CAN bus interface
• 8-16 digital inputs and outputs
• 0-12 analog outputs
• 0-24 analog inputs
• PCMCIA slot
• 1 potential-free relay contact
• 6 slots for B&R SYSTEM 2003 screw-in modules, 3 of which support additional functions(TPU) such as event counting, trigger functions, stepper motor control, frequency measurement or communication modules
• Expansion module for the Power Panel 41 which allows the operation of B&R SYSTEM2005 interface module inserts
The Power Panel is equipped with a PC-compatible serial interface with a 16-byte FIFO buffer. This non-electrically isolated interface is primarily intended for programming Power Panel devices using Automation Studio. The RS232 can also be used as a general interface (e.g. third-party connections, barcode reader, etc.).
Specifications:
The table below describes the parameters of the 4P3040.00-K21 Power Panel 41 Keyboard Membrane.
| Part Number : | 4P3040.00-K21 |
| Product Line: | Power Panel 41 |
| Screen diagonal | 5.7 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Keypad |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related Power Panel 41 Series Part No. :
| Power Panel 41 | Description | Inventory status |
| 4P3040.00-490 | B and R Power Panel 41 Membrane Switch Replacement | In Stock |
| 4P3040.00-K12 | Power Panel 41 B&R HMI Membrane Keyboard Keypad | In Stock |
| 4P3040.00-K41 | B and R Power Panel 41 Switch Membrane Repair | In Stock |
| 4P3040.00-K32 | PP41 B&R Membrane Keypad Keyboard Replacement | Available Now |
| 4P3040.00-K43 | Power Panel 41 B&R Membrane Keypad Switch | In Stock |
| 4P3040.00-K47 | B and R Power Panel 41 Operator Panel Keypad | Available Now |
| 4P3040.00-K50 | B&R Power Panel 41 Keypad Membrane Repair Replacement | In Stock |
| 4P3040.01-490 | B&R Power Panel 41 Membrane Keypad Switch | In Stock |
| 4P3040.01-K16 | PP41 B and R Membrane Keyboard Keypad | Available Now |
| B and R PP41 | Description | Inventory status |
B&R Power Panel 41 Manuals PDF Download:
FAQ:
Question: What causes Power Panel 41 B&R 4P3040.00-K21 screen burn-in?
Answer:
• Static images
• No screensaver
• Sharp transitions in contrast (e.g. black/white)
• High ambient temperatures
• Operation outside of specifications
Question:How can the B&R Power Panel 41 4P3040.00-K21 service life of the backlight be extended?
Answer:
• By setting the display brightness to the lowest value that is still comfortable for the eyes
• By using dark images
• By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time
