M2I X TOP Wide Series XTOP10TW-UD Overlay HMI Touch
group nameM2I
-
Min Order1 piece
brand nameVICPAS
modelM2I XTOP10TW-UD
payment methodWestern Union, T/T, PayPal, Credit Card
-
update timeFri, 24 May 2024 20:33:54 GMT
Paramtents
Brand M2I
Size 10.1 inch
Warranty 365 Days
Product Line M2I X TOP Wide Series
Supply XTOP10TW-UD HMI Touch Glass Front Overlay
Shipping 2-4 workdays
Part Number M2I X TOP Wide Series XTOP10TW-UD
Packging & Delivery
Min Order1 piece
Briefing
Detailed

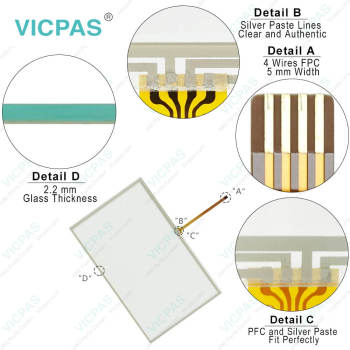

M2I X TOP Wide Series XTOP10TW-UD Front Overlay Touch Screen Display Replacement
Order each part separately is available
Ground Wiring warning
1.The XTOP10TW-UD Protective Film Touch Screen Monitor product has enough anti-noise measure, so except that there are many noises. Specially, the ground is not needed.
2. The ground should be the exclusive ground. The ground should be type Class 3 ground (ground resistor is less than 1000).
3. When not doing the exclusive ground, do common ground.
4. Use the cable of M2I XTOP10TW-UD Touch Membrane Front Overlay more than 4 mm2. Put the point of the ground near product and shorten Ground line.
Cleaning the XTOP10TW-UD Protective Film Touch Screen Display
When the surface or frame of the display become dirty, spray the cleaning solution onto a soft cloth and wipe the device. Do not spray the cleaning solution directly onto the XTOP10TW-UD Touch Screen Film Front Overlay.
Periodic Check Points
Check the followings periodically for best condition of the XTOP10TW-UD Touch Screen Glass Protective Film.Environment
a.Is the operating temperature within the allowable range (-10C~50C)?
b.Is the operating humidity of XTOP10TW-UD Front Overlay Touch Membrane within the allowable range (10%~80%RH)?
c.Is the Surrounding pollution no corrosive gas?
Power
Is the input voltage within the change range (-15%~+10%)?
Related Items
a.Check the guarantee duration of LCD Backlight of XTOP10TW-UD Front Overlay Touch Screen Tablet by eye.
b.Check the touch pad there is no damage, scratch or pollution by eye.
Specifications:
The table below describes the parameters of the M2I XTOP10TW-UD Front Overlay Touch Membrane HMI Parts.
| Status LED: | Built-in |
| Operation Temperature: | 0°C ~ +50°C |
| Brand: | M2I |
| Touch Type: | Analog Resistive Film |
| Ambient Humidity: | 85% RH or less |
| Part Number: | XTOP10TW-UD |
| Screen Size: | 10.1'' |
| Warranty: | 365 Days |
| Storage Temperature: | -10°C ~ +60°C |
| Operating Humidity: | 0°C ~ +90°C |
Related M2I X TOP Wide Series HMI Part No. :
| M2I X TOP Wide Series | Description | Inventory status |
| XTOP04TW-UD | M2I X Top Wide Series Touch Screen Tablet Front Overlay Replacement | In Stock |
| XTOP05TW-UD | M2I X Top Wide Series Protective Film Touch Panel Glass Repair | Available Now |
| XTOP07TW-LD | M2I X Top Wide Series Front Overlay Touch Membrane Replacement | In Stock |
| XTOP07TW-UD | M2I X Top Wide Series HMI Touch Glass Protective Film Repair | Available Now |
| M2I X TOP Wide Series | Description | Inventory status |
M2I X TOP Wide Series HMI Manuals PDF Download:
FAQ:
Question: What are the environment specifications of M2I X TOP Wide Series XTOP10TW-UD Front Overlay Touch Screen Display?
Answer:
Question: What are the front part names and specifications of XTOP10TW-UD?
Answer: The front part names and specific cation of M2I X TOP Wide Series XTOP10TW-UD are TFT 16M Color LCD, Analog Touch Panel and Front Cover Sheet for Damp Proof and Dust Proof.
Question: What is the memory specifications of XTOP10TW-UD?
Answer:
Common misspellings:
TOP10TW-UDXTOP10TWUD
XTOP10TWW-UD
XTOP10T-WUD
XTOP10TW-DU
