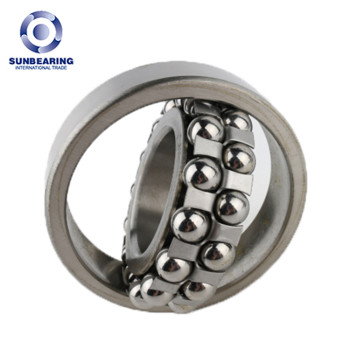

1205 ETN9 Self Aligning Ball Bearing 25*52*15mm SUNBEARING

FOB Price
  • US $1.57

    1 - 2,000 piece

  • group nameSelf-aligning Ball Bearing

  • Min Order1 piece

  • brand nameSUNBEARING Rolling Bearing Manufacturer

  • model1205

  • payment methodL/C, T/T, Paypal, Alibaba Trade Assurance

  • update timeMon, 28 Mar 2022 15:23:47 GMT

Paramtents

  • Color Silver

  • Bore Size 25 mm

  • Outer Diameter 52 mm

  • Width 15 mm

Packging & Delivery

  • Size6cm x 3cm x 2cm

  • Weight0.14kg / piece

  • Min Order1 piece

Briefing

Bearings with an extended inner ring; Sealed bearings

Detailed

Product Description

1205 self aligning ball bearing

Self Aligning Ball Bearing 1205

Specification

Design Units

Metric

Structure

Ball Bearing

Weights

0.139kgs

Cage Material

Steel cage

Material

Chrome Steel GCR15

Ball Type

Carbon chromium steel

Seals Type

Open

Certificate

ISO9001:2008

Advantage

Prompt Delivery shipped within 72 hours;  Bearings with an extended inner ring; Sealed bearings

Number of Rows

Single

Dimensions

d-Bore Diameter

25mm

D-Outer Diameter

52mm

Precision Rating

P5 P6 P4 P2 P0

Clearance



                                                                                      C2 C3 C4 C5 C0

H-Total Width

15mm

cages for self aligning ball bearing


1) Self-Aligning Ball Bearing has two kinds of structure: cylindrical or tapered hole, the cage material is steel plate, brass, etc. Its characteristic is a spherical raceway, with the nature of mind, can automatically adjustable to compensate concentration and shaft deflection caused by error, but the inner and outer rings' relative inclination shall not be more than 3 degrees.



2) Self-Aligning Ball Bearing can bear a larger radial load, but also can withstand axial load. This kind of bearing outer ring raceway is spherical shape, so it is self-aligning performance when the axial force bending or tilt the inner center line and center of the outer ring line relative slope up to a maximum of 1 to 2.5degrees bearing can still work.



3) Taper bore of 1:1 2 or 1:30. In order to strengthen the lubrication performance of the bearing, the bearing outer ring of the oil groove and the processing of three oil holes.



4) Self-Aligning Ball Bearing is applied to withstand heavy load and impact load, precision instruments, low noise motor, automobile, motorcycle, metallurgy, rolling mill, mine, oil, paper, cement, sugar industry, general machinery, and so on.
