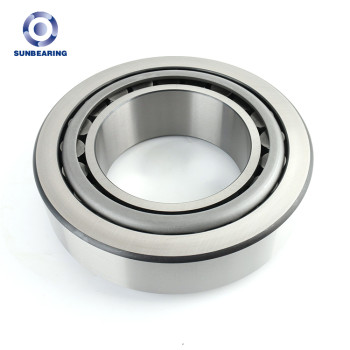

SUNBEARING 32018 Tapered Roller Bearing Silver 90*140*32.4mm Chrome Steel GCR15

FOB Price
  • US $16.62

    1 - 2,000 piece

  • group nameTapered Roller Bearing

  • Min Order1 piece

  • brand nameSUNBEARING Rolling Bearing Manufacturer

  • model32018

  • payment methodL/C, T/T, Paypal, Alibaba Trade Assurance

  • update timeTue, 05 Apr 2022 16:41:01 GMT

Paramtents

  • Color Silver

  • Service OEM Service

  • Sample Available

  • MOQ 1

Packging & Delivery

  • Size15cm x 10cm x 4cm

  • Weight1.71kg / piece

  • Min Order1 piece

Briefing

The inner and outer rings of the bearing have tapered raceways.

Detailed

Product Description

32018 taper roller bearing

Tapered Roller Bearing 32018

Specification

Design Units

Metric

Structure

Roller Bearing

Weights

1.71kgs

Cage Material

Steel cage

Material

Chrome Steel GCR15

Ball Type

Carbon chromium steel

Seals Type

Metal Seals

Certificate

ISO9001:2008

Advantage

The inner and outer rings of the bearing have tapered raceways.

Number of Rows

Single

Dimensions

d-Bore Diameter

90mm

D-Outer Diameter

140mm

Precision Rating

P5 P6 P4 P2 P0

Clearance



                                                                                      C2 C3 C4 C5 C0

H-Total Width

32.4mm

Basic Load Ratings

Cr Dynamic Load Rating

165000N

C0r Static Load Rating

255000N



 tapered roller bearing

Tpered Roller Bearing Application:
Taper roller bearings are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preload mounting can be made.Taper roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.Tapered roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bear heavy load and other Tapered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.
