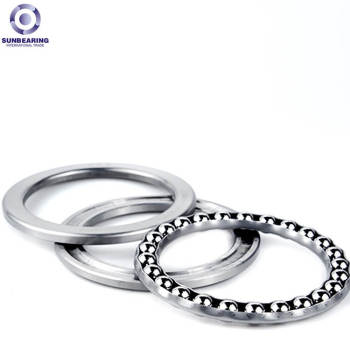

SUNBEARING 51111 Thrust Ball Bearing Silver 55*78*16mm Chrome Steel GCR15

FOB Price
  • US $2.43

    1 - 2,000 piece

  • group nameThrust Ball Bearing

  • Min Order1 piece

  • brand nameSUNBEARING Rolling Bearing Manufacturer

  • model51111

  • payment methodL/C, T/T, Paypal, Alibaba Trade Assurance

  • update timeMon, 04 Apr 2022 16:22:36 GMT

Paramtents

  • Color Silver

  • Service OEM Service

  • Sample Free Sample

  • MOQ 1

Packging & Delivery

  • Size8cm x 6cm x 2cm

  • Weight0.22kg / piece

  • Min Order1 piece

Briefing

Optional seating rings take initial misalignment.

Detailed

Product Description

51111 thrust ball bearing

Thrust Ball Bearing 51111

Specification

Design Units

Metric

Structure

Ball Bearing

Weights

0.223kgs

Cage Material

Steel cage

Material

Chrome Steel GCR15

Ball Type

Carbon chromium steel

Seals Type

Open

Certificate

ISO9001:2008

Advantage

Optional seating rings take initial misalignment.

Number of Rows

Single

Dimensions

d-Bore Diameter

55mm

D-Outer Diameter

78mm

Precision Rating

P5 P6 P4 P2 P0

Clearance



                                                                                       C2 C3 C4 C5 C0

H-Total Width

16mm

Basic Load Ratings

Cr Dynamic Load Rating

35000N

C0r Static Load Rating

93000N



Thrust ball bearings are separated-type bearings, shaft ring seat ring can be just the ball and cage component separation. Axis loop is compatible with the ring axis, sitting circle is compatible with the bearing hole ring, and the gap between shaft.


Application of Thrust ball bearings


Thrust ball bearings are applied to withstand the side of the axial load, lower speed parts, such as crane hooks, vertical pumps, vertical centrifuge, jack, speed reducer, and so on. Shaft bearing ring , seat ring and rolling elements are separated, you can dismantle respectively.
