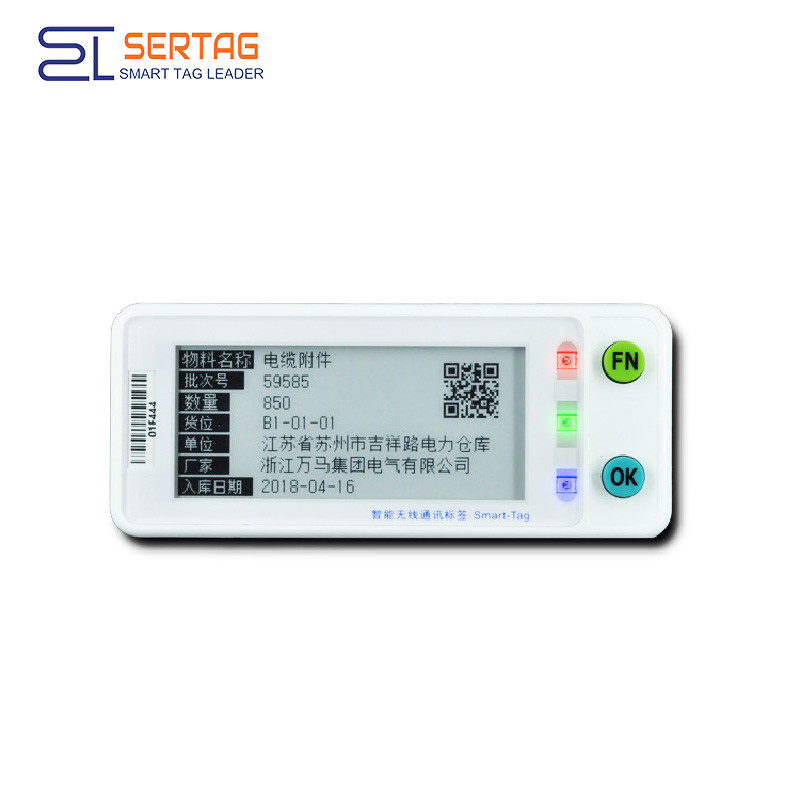

2.9 inch Digital Price Tag E-ink Electronic Shelf Label With Buttons for Warehousing
group nameElectronic Paper Tags Pick To Light For Warehouse
-
Min Order1 piece
brand nameSertag Electronic shelf labels Manufacturer
modelSETW0290B
payment methodT/T
-
update timeMon, 03 Jun 2024 17:54:46 GMT
Paramtents
Display Size 2.9 inch
Outline 45.1mm(V)*107.9mm(H)*16mm(D)
Weight 89g
Color Display Black and White
Display Resolution 296(H)×128(V)
Communication Band 433MHz
Response Time 3S(Configurable)
Battery Life Not less than 2 years，Replaceable
Battery CR2450*2
Packging & Delivery
Min Order1 piece
Briefing
e-ink electronic shelf label,digital price tag ,warehousing electronic shelf labels,electronic shelf label with two buttons
Detailed
2.9 inch Digital Price Tag E-ink Electronic Shelf Label with Two Buttons for Warehousing
Feature
1. Low energy
2. Black and white
3. Cloud or local Server based options
4. 433MHz/868 MHz /915 MHz communication
5. 296*128pixels full graphic, E-Paper displays
6. Perfect for the retails, warehouses, logistics management and meeting system
Model | SETW0290B |
Screen Size | 2.9inch |
Dimension | 45.1mm(V)*107.9mm(H)*16mm(D) |
Display Resolution | 296*128 |
Display Type | Bi-stable EPD(E-ink Display) |
Display Color | Black and white |
Appearance | Standard unit available with white frame |
Unit Identifier Barcode | Recognized by Scanner or Labeling on back |
|
Opereating Temperature
|
0~50℃
|
|
Storage Temperature
|
-10~60℃
|
Battery Life | Not less than 2 years，Replaceable |
|
Replaceable Batteries
|
CR2450*2
|
Weight | 89g |
|
Communications
|
433MHz/868 MHz /915 MHz
|
Operating Voltage | 2.4V~3.6V |
System Architecture
Solution for Intelligent warehousing
Why Choose Sertag's Electronic Shelf Labels?
Using advanced electronic shelf labels and ultra-low power consumption wireless networking technology, the operation information generated in the process of warehousing, goods picking, stock taking and other processes is realized, and the real-time interaction with MES system is realized.
Realize informatization, paperless management and fine management of goods and storage space;
Label system and management system docking, analysis of inventory status, real-time storage management;
MES system confirms task list and automatically assigns tasks to operators;
To realize the segmentation and merging of documents to satisfy the simultaneous operation of multiple orders and multiple people;
Design batch management and efficiency management during picking and allocation, and realize fifo control of materials;And can achieve the designated materials for priority distribution;
All business documents are automatically extracted from MES system to realize real-time synchronization of warehouse electronic label system and MES data.Create an independent database to record the information that cannot be recorded by ERP at present as the supplement and improvement of ERP;
Provide a variety of query conditions, to solve the operator experience management bottleneck, to avoid staff mobility caused by the loss of the enterprise;
System operation is simple and clear, easy to learn and easy to understand, make full use of the information resources, reduce the workload of information input, reduce the labor intensity of operators.
