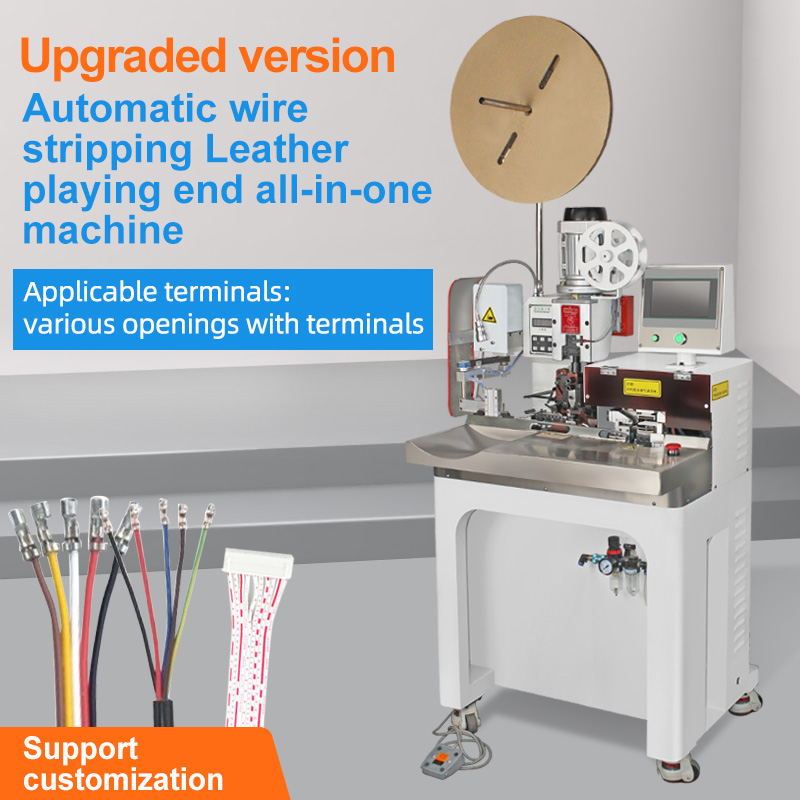

TR-1600 Upgraded Version of Automatic Wire Stripping and Terminal Crimping Machine
group nameWire Stripping and Terminal Crimping Machine
-
Min Order1 piece
brand nameTuring
modelTR-1600
payment methodWestern Union, MoneyGram, T/T
-
update timeWed, 29 May 2024 10:38:45 GMT
Paramtents
Power AC220V/50HZ,
Application Tin Dipping Machine
Feature Stable Performance
Warranty 1year
Control Servo and Step motor
Contact Lily 0086-13715588365
Packging & Delivery
Min Order1 piece
Briefing
TR-1600 Upgraded Version of Automatic Wire Stripping and Terminal Crimping Machine
Detailed
TR-1600 Upgraded Version of Automatic Wire Stripping and Terminal Crimping Machine
Working voltage:AC220V 50/60Hz
Working air pressure:0.4-0.6Mpa
Dimensions:650*850*1350mm
Machine weight:About 95KG
Suitable wire:Multi-core wire 2-15P,cable, etc.
Wire diameter range:wire diameter 0.8-3.5mm, the widest 25mm
Core wire cutting:0-50mm
Core wire stripping:0-10mm
Wire management function:Air cylinder and screw rod, the stroke is about 100mm
Applicable terminals:Various openings with terminals
Crimping capacity:2T
Production Efficiency:taking 8-core wire as a reference, every 700 pieces/H (5600terminals)
All-in-one machine for automatic cable management,stripping, and end cutting
Note: The pre-stripping length of the sheath wire should be determined according to the number ofcores; for example: 4P core wire, the sheath should be pre-stripped at least 25mm,The more corewires, the longer the sheath needs to be pre-stripped.
Note: The pre-stripping length of the sheath wire should be determined according to the number ofcores; for example: 4P core wire, the sheath should be pre-stripped at least 25mm,The more corewires, the longer the sheath needs to be pre-stripped.
