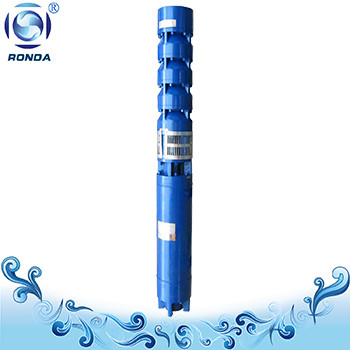

Multistage deep well pump
FOB Price
- US $1000.00
1 - 999,999 set
group nameCENTRIFUGAL WATER PUMP
-
Min Order1 set
brand nameRONDA
modelQJ-P
payment methodL/C, D/A, D/P, T/T, Western Union, RMB is available
-
update timeTue, 30 Jul 2013 14:03:34 GMT
Paramtents
Material available SS/CI
Duty Heavy
Packging & Delivery
Min Order1 set
Briefing
Deep well pump in multistages.Up to 90kW, 125mm caliber, Head up to 588m, made of cast iron.
Detailed
Deep Well Pump for water
QJ pump is vertical multi-stage centrifugal pump submerged in water for water supply from pool or deep well. Heavy duty, continuous working.
Pump size is vertical, so whole pump may be submerged in water of small size well. Big size gets very big capacity and head.
| Working Principle: | Centrifugal, Multi-stage |
| Main applications: | Water |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 50hz/60hz |
| Max. permissible fluid temperature: | 80°C |
| Type of connection: | Flange |
| Installation position: | Vertical |
| Casing/Inner parts material: | Cast iron /Cast iron |
| Shaft seal type: | Mechanical seal |
| Free passage: | 0.1 mm |
| Maximum gravity: | 1.03 |
| Maximum drive rating: | 90kW (120hp) |
| Maximum caliber: | 5inch (125mm) |
| Maximum dischrage head: | 588m |
| Flow rate range: | 10-125 m³/h (167-2083l/m) |
