D-3A stainless steel food grade rotor pump
- US $5,000.00
1 - 40,000 set
- US $200.00
40,001 - 999,999 set
group nameGEAR/ROTOR OIL PUMP
-
Min Order1 set
brand nameRONDA
modelD-3A
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeMon, 17 Mar 2014 15:02:45 GMT
Paramtents
Theory Rotary Pump
Structure Lobe pump
Usage Oil, food, colloid
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Oil, food, colloid
Packging & Delivery
Min Order1 set
Briefing
2.Safety and sanitary
3.Special designed for food
4.Deliver high viscosity mediums
Detailed

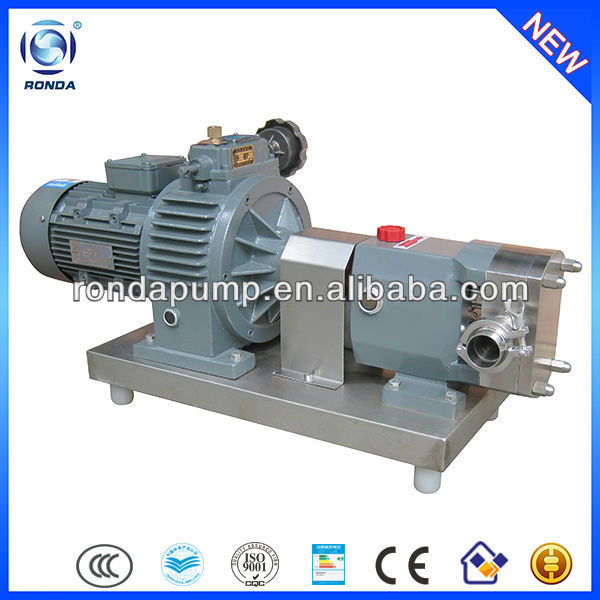

D-3A Stainless Steel Food Grade Rotor Pump
1. Introduction:
1. D-3A Stainless steel food grade rotor pump is special designed for foodstuff.
2. The dependable rust protection and the non-toxic sealing of the pump ensure the safety and the sanitary standard.
3. Apply to the transfer of the mediums that are easy-foaming/high viscosity/high concentration/with solid and protect them from physicochemical reaction & remain the same.
4. Low rotational speed prevent the change of existing quality, physics and chemistry properties.
2.Product details:
| Working Principle: | Double rotors |
| Main applications: | Oil, food, colloid |
| Driver: | Electric motor,diesel motor. |
| Power Specs: | 380/415V 3phase;50hz/60hz,etc |
| Max.permissible fluid temperature: | 200°C(392°F) |
| Type of connection: | Thread, Thread, Quick couple. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Stainless Steel/Stainless steel |
| Shaft seal type: | Mechanical seal |
| Free passage: | 3 mm |
| Maximum viscosity: | 1X106 C.S.T |
| Maximum drive rating: | 22kW(30HP) |
| Maximum caliber: | 125mm(5inch) |
| Maximum discharge-side pressure: | 1.6MPa(16bar) |
| Suction pressure | 0.08Mpa(0.8bar) |
| Flow rate range: | 0.3-43m3/h(1.3-189.2US.GPM) |
3. Performance:
| Model | Capacity of per 100 r | Speed | Capacity | Motor power | Viscosity | Caliber | Connection |
| (L) | (r/min) | (L/h) | (KW) | (c.s.t) | (mm) | ||
| D-3A-3 | 3 | 200-500 | 300-800 | 0.55 | 1-1000000 | Φ25×1.5 | Clamp |
| D-3A-6 | 6 | 200-500 | 650-1600 | 0.75 | 1-1000000 | Φ25×1.5 | |
| D-3A-8 | 8 | 200-500 | 850-2160 | 1.5 | 1-1000000 | Φ32×1.5 | Thread |
| D-3A-12 | 12 | 200-500 | 1300-3200 | 2.2 | 1-1000000 | Φ38×1.5 | |
| D-3A-20 | 20 | 200-500 | 2100-5400 | 3 | 1-1000000 | Φ50.8×1.5 | Flange |
| D-3A-30 | 30 | 200-400 | 3200-6400 | 4 | 1-1000000 | Φ42×1.5 | |
| D-3A-36 | 36 | 200-400 | 3800-7600 | 5.5 | 1-1000000 | Φ50.8×1.5 | |
| D-3A-52 | 52 | 200-400 | 5600-11000 | 5.5 | 1-1000000 | Φ63.5×5 | |
| D-3A-66 | 66 | 200-400 | 7100-14000 | 7.5 | 1-1000000 | Φ76×2 | |
| D-3A-78 | 78 | 200-400 | 9000-18000 | 7.5 | 1-1000000 | Φ63.5×2 | |
| D-3A-100 | 100 | 200-400 | 11000-22000 | 11 | 1-1000000 | Φ76×2 | |
| D-3A-135 | 135 | 200-400 | 15000-30000 | 15 | 1-1000000 | Φ102×2 | |
| D-3A-160 | 160 | 200-400 | 17000-34000 | 18.5 | 1-1000000 | Φ102×3 | |
| D-3A-200 | 200 | 200-400 | 21600-43000 | 22 | 1-1000000 | Φ125×3 |
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
Meticulous details & fine appearance:
Safe packing with standard plywood case:
