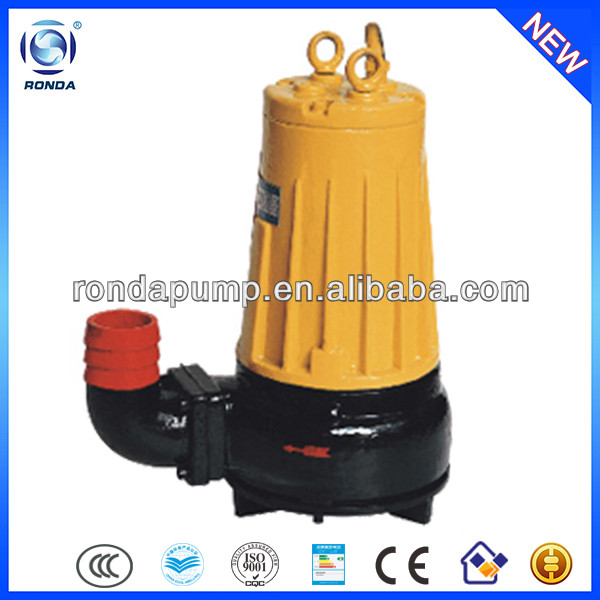

AS AV non clogging submersible water pump price
- US $1,200.00
1 - 40,000 set
- US $145.00
40,001 - 999,999 set
group nameSEWAGE/SLURRY PUMP
-
Min Order1 set
brand nameRONDA
modelAS AV
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeMon, 17 Mar 2014 16:43:28 GMT
Paramtents
Theory Centrifugal Pump
Structure Centrifugal
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Electirc
Pressure Low Pressure
Application Sewage
Packging & Delivery
Min Order1 set
Briefing
2.Fiber avulsion
3.Strong sewage drainage
4.Simple structure, high efficiency
Detailed
AS AV non clogging submersible water pump price
1. Introduction:
1. AS AV non clogging submersible water pump’ features are simple structure, strong sewage drainage, high efficiency and energy saving.
2. Pump can be fitted with auto-control and auto-erection devices to make the combination more excellent and pump running safer.
3. This series pumps are suitable for the pharmacy, papermaking, chemical industry, coal processing industry, city sewage drainage system etc. Could transport the liquids containing solid grains, long fiber substance, specially dirty, adhesive and smooth sewage water and matters and to extract pure water and corrosive media. (The main parts of the pump are made of cast iron, so it cannot be used to extract high corrosive liquids)
2. Product details:
| Working Principle: | Whole submerget, tearing |
| Main applications: | Sewage |
| Driver: | Electric motor |
| Power Specs: | 220/380V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 60°C(140°F) |
| Type of connection: | Flange, Thread |
| Installation position: | Vertical |
| Casing/Inner parts material: | Cast iron / Cast iron |
| Shaft seal type: | Mechanical sealing |
| Medium particle density: | 1.0-1.3×103kg/m3 |
| Maximum drive rating: | 7.5KW(10HP) |
| Maximum caliber: | 150mm(6inch) |
| Maximum discharge-side pressure: | 0.25MPa(2.5bar) |
| Maximum head: | 25m(82ft) |
| Flow rate range: | 15-145m3/h(66-638US.GPM) |
3. Performance data:
| Model | Capacity | Head | Motor power | Speed | Voltage | Current | Hose ID |
| (m3/h) | (m) | (KW) | (r/min) | (V) | (A) | (mm) | |
| AS10-2W/CB | 15 | 4 | 1.1 | 2850 | 220 | 5.65 | 76 |
| AS10-2CB | 15 | 4.5 | 1.1 | 2850 | 380 | 2.9 | 76 |
| AS16-2CB | 29 | 7.6 | 1.5 | 2850 | 380 | 3.5 | 76 |
| AS30-2CB | 42 | 11 | 3 | 2850 | 380 | 6.4 | 76 |
| AS55-2CB | 45 | 13 | 5.5 | 2900 | 380 | 11.1 | 127 |
| AS55-4CB | 100 | 7.5 | 5.5 | 1450 | 380 | 11.6 | 152 |
| AS75-2CB | 60 | 18 | 7.5 | 2900 | 380 | 15 | 127 |
| AS75-4CB | 145 | 10 | 7.5 | 1450 | 380 | 15.4 | 152 |
| AV14-4 | 22 | 5.8 | 1.5 | 1450 | 380 | 3.5 | 76 |
| AV55-2 | 30 | 20 | 5.5 | 2900 | 380 | 11.1 | 76 |
| AV75-2 | 30 | 25 | 7.5 | 2900 | 380 | 15 | 76 |
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
