FY pneumatic pulp pump

FOB Price

US $150.00
1 - 999,999 set

group nameSEWAGE/SLURRY PUMP
Min Order1 set
brand nameRONDA
modelFY
payment methodL/C, D/A, D/P, T/T, Western Union
update timeThu, 27 Jun 2013 17:47:36 GMT

contact supplier

Paramtents

working principle pneumatic
installation submersible

Packging & Delivery

Min Order1 set

Briefing

FY pump is a pneumatic (air operated) pulp pump, which is light and convenient for all kinds of chemical, slurry, etc.

Detailed

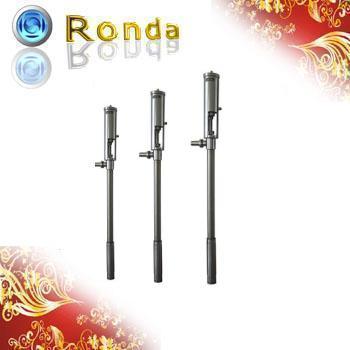

FY Pneumatic Pulp Pump

FY pump is a pneumatic (air operated) pulp pump, which is light and convenient for all kinds of chemical, slurry, etc.

Model FY1.2T-1 FY1.2T-2 FY3.2T-1 FY3.2T-2 FY5.0T
Outline dimensions φ100㎜×H1450㎜ φ100㎜×H1400㎜ φ120㎜×H1600㎜ φ120㎜×H1500㎜ φ150㎜×H1680㎜
Weight 16㎏ 15㎏ 23㎏ 19㎏ 37㎏
Flowrate 10-30L/min 10-30L/min 20-70L/min 15-50L/min 30-100L/min
Max. Solids φ1.2㎜ φ1.2㎜ φ3㎜ φ1.2㎜ φ5㎜
Head 30m 30m 30m 30m 30m
Viscosity 5X104cps/25℃ 5X104cps/25℃ 5X104cps/25℃ 5X104cps/25℃ 5X104cps/25℃
Inlet/Outlet 60㎜ 32㎜ 57㎜ 32㎜ 72㎜ 38㎜ 57㎜ 32㎜ 88㎜ 50㎜
Discharge 1 1/4” 1 1/4” 1 1/2” 1 1/2” 2”
Air connector 3/8” 3/8” 3/8” 3/8” 3/8”
Air supply port 0.3-1.0MPa/min 0.3-1.0MPa/min 0.3-1.0MPa/min 0.3-1.0MPa/min 0.3-1.0MPa/min
Discharge pre. 3-10MPa 3-10MPa 3-10MPa 3-10MPa 3-10MPa
Air tank pressure ratio 2∶1 2∶1 3∶1 4∶1 3∶1
Air comsumption 0.3-1.0㎡/min 0.3-1.0㎡/min 0.3-1.0㎡/min 0.3-1.0㎡/min 0.3-1.0㎡/min
