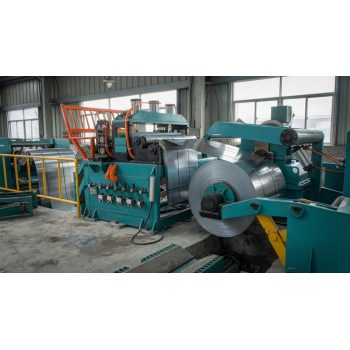

Slitting Line

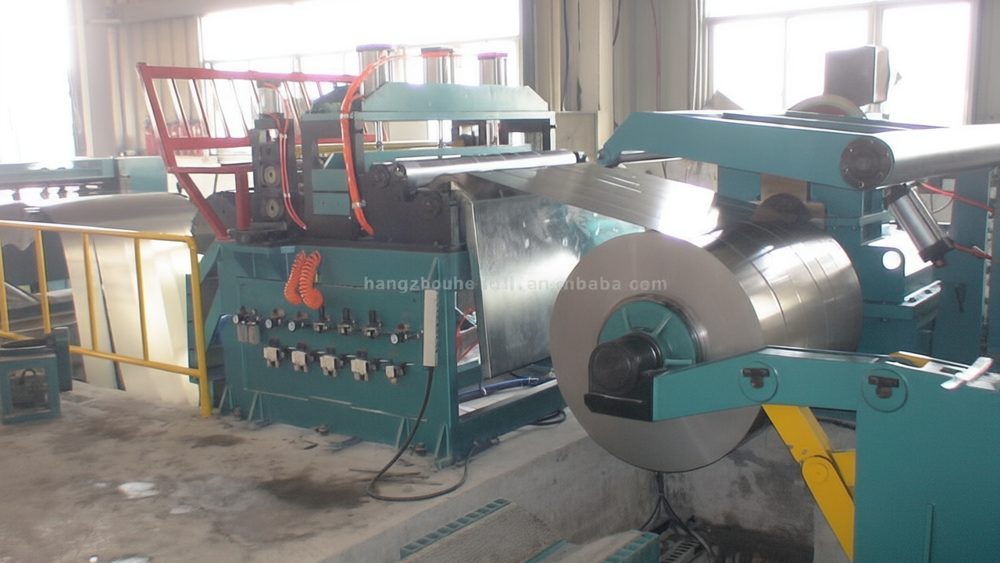

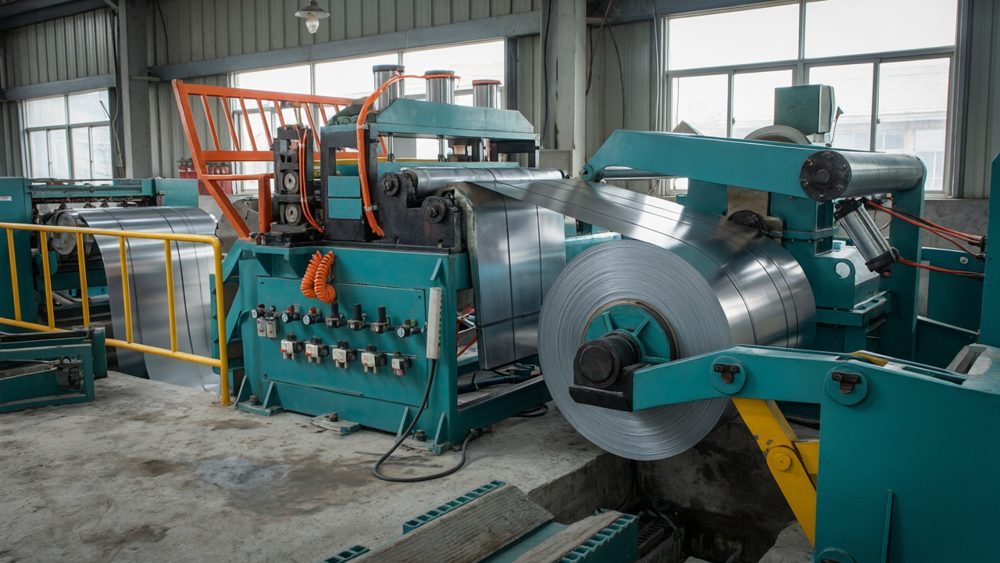

Slitting Line Specifications:The Slitting Line modeled ZJ1250 is suitable for accurately slitting transformeriron core, motor iron core, silicon-steel plate, tinplate and strip steel, etc.The electric control of this line uses SIEMENS PLC and MITSUBISHI technology. Thehydraulic components is Japanese YUKEN and the bearings in key part is JapaneseNSK. The material of the knife is "DIAMOND" brand Carbide.Strip Thickness: 0.15-1.2mmStrip Width: 300-1250mmBurr: Max. 0.02mmSlitting Width Tolerance: Max. 0.02mmLine Speed: Max. 120m/minNumbers of Slits: Max. 15Slitting Width: 201250mmUncoiler Mandrel Diameter 500mm, Expansion Range 460mm-510mmRecoiler Mandrel Diameter 508mm, Expansion Range 480mm-508mmUncoiler Max. Load: 10 tons; Coil Diameter: ≤1500mmRecoiler Max. Load: 10 tons; Coil Diameter: ≤1500mmThe Max. Rising Distance of Pallet of Discharge Cart is 400mmLine Total Power: Max. 60KwLine Total Weight: Max. 25 TonsWork Place Size: length 15m, Width 7mPower: 60Hz, 380V
