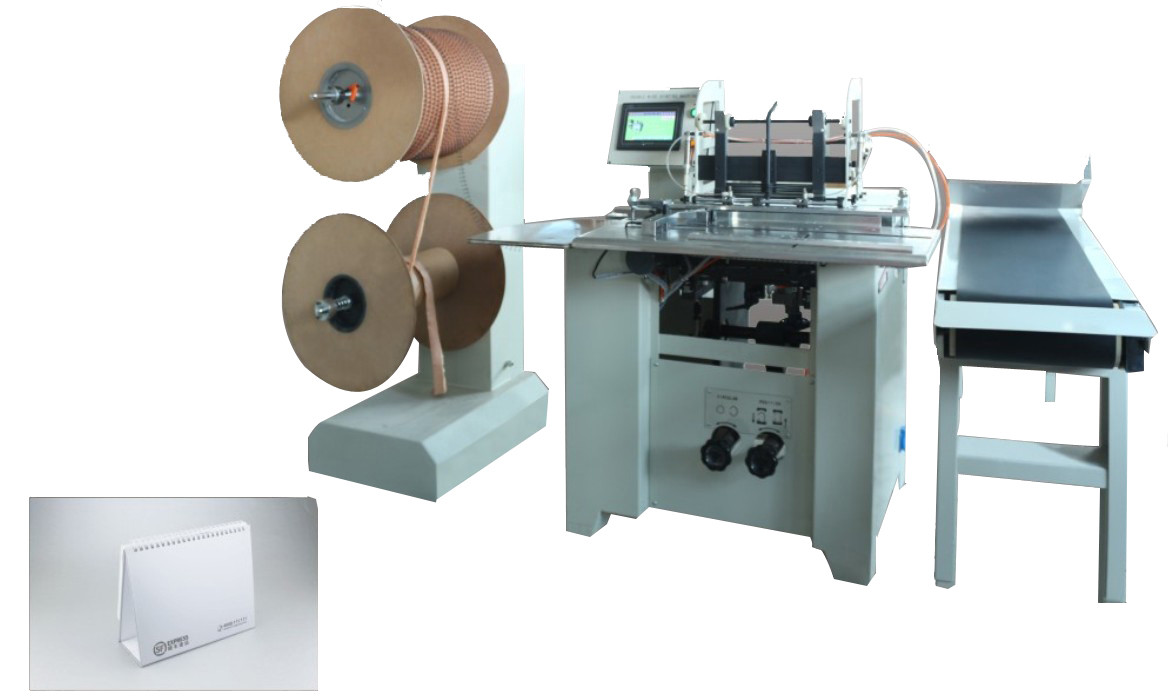

Automatic heavy duty double wire book binding machine（DCA-520）
FOB Price
- US $7500.00
1 - 100,000 set
group nameOther binding machine
-
Min Order1 set
brand nameSUPU
modelDCA-520
payment methodT/T
-
update timeSat, 27 Apr 2024 23:48:10 GMT
Paramtents
Type Wire Binding Machine
Operation Electric
Power 1ph 220V 50/60HZ(other voltage on request )
Machine Weight 300KGS
Binding Capacity 1/4
Max. Binding Length 520mm
Air Pressure 5-8Bar
Workbench Dimension: 680×310mm
Main machine dimensions 0.8×0.75×1.15m
Feeding reel dimensions 0.6×0.5×1.35m
Packging & Delivery
Min Order1 set
Briefing
PLC chontrol, easy to setting and adjusting
can change the die mould
optional hanger attachment
can change the die mould
optional hanger attachment
Detailed
Description:
New Design binding machine
Delivery conveyor included for tranfering the bond documents
Controlled by PLC,easily to setting and adjusting .
Designing and manufacturing size closing moulds various loops diameters Can be processed,and the changing of the moulds is fast and esay.
Optinal hanger attachment.
Coil inserting and cutter automatic without a plier by hand
Coil inserting and cutter automatic without a plier by hand
Work Speed: up to 1000 Volume/hour(Effective speed depends on operator's ability and on the item to be bound)
air pressure: 5-8KGF
Platform demension: 680*310mm
Binding Capacity: 1/4" - 3/4"
Binding Capacity: 1/4" - 3/4"
The max binding width : 520mm
Power: 1ph 220V 50/60HZ(other voltage on request )
machine dimension : main machine :780*730*1150mm
Feeding reel: 600*500*1320mm
N.W: 300kg
This machine is used for binding double wire books, notebooks, wall calendarsand so on, it has the function of automatic cutting ,counting loop s-counting,skip binding and closing .
More details:
Details information:
Convert belt included for transfer the bond document to the covert tray
The wide work platform make you binding comfortable
A convert tray aid to transfer the bond documents, save your time and enhance poroductivity,
PLC control, it's easy adjustable
