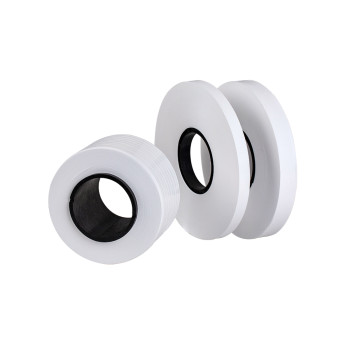

Low density PTFE film for Thermocouple wire & cable
group nameLow Density PTFE Films
-
Min Order50 kilogram
brand nameForeverseal PTFE Tapes Manufacturer
modelFS5-HD
payment methodL/C, T/T
-
update timeSat, 18 Jul 2026 17:04:13 GMT
Paramtents
Brand & Logo Foreverseal
Busniess type Manufacturer
Material PTFE(Polytetrafluorethylene)
Standard density 0.50g/cm3 - 0.90g/cm3
Thickness 50mm - 254mm
Width 5-200mm
Packging & Delivery
Min Order50 kilogram
Briefing
Detailed
LOW DENSITY (ePTFE) FILM & TAPE
Low density PTFE film & tape produce micropore through stretch and under a certain specific and tightly controlled conditions to achieve low dielectric constant and high tensile strength.
It's light、soft、flame retardant and the low dielectric constant makes low density PTFE tapes for high frequency microwave coaxial cable applications in data transfer,militarty and medical field.
MATERIAL | PTFE(Polytetrafluorethylene) | |||||||
COLOR | NATURE | |||||||
THICKNESS | 0.051mm | 0.076mm | 0.102mm | 0.127mm | 0.152mm | 0.203mm | 0.254mm | |
|
TOLERANCE
|
+/-0.005 | +/-0.005 | +/-0.006 |
+/-0.0076
|
+/-0.0076 |
+/-0.01
|
+/-0.01
|
|
WIDTH | 4mm - 200mm | |||||||
DENSITY | 0.50g/cm3 - 0.90g/cm3 | |||||||
|
TENSILE STRENGTH (minimum)
|
12MPa |
|||||||
|
ELONGATION (minimum)
|
50% |
|||||||
· High temperature and chemical resistance
· Flammability resistivity
· High porosity results in superior dielectric properties
· High tensile strengths that support fast wrapping speeds
· Long joint free lengths
· RoHS and REAH compliant
· Wire and cable insulation for extreme chemical and thermal environments
· Binder tape in cable constructions and wire harnesses
· Dielectric material in coaxial cables
· Convoluted hose constructions
· And more
