single/Double sides and hot/cold anti-curl laminating machine DS-380

  • group nameLaminator

  • Min Order1 piece

  • brand nameSUPU

  • modelDS-380

  • payment methodT/T

  • update timeFri, 03 Jul 2020 15:04:18 GMT

Paramtents

  • Laminating width 340mm

  • Laminating thickness <=7mm

  • Laminating speed 3 meter/min

  • Lainating temperature 20-160℃

  • Power 1100W

Packging & Delivery

  • Size62cm x 44cm x 29cm

  • Min Order1 piece

Briefing

Single side and Double sides laminator, hot and cold laminating machine with Anti-curl systems.

Detailed

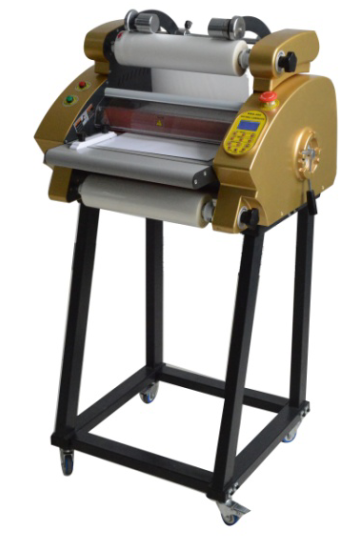

single/Double sides and hot/cold anti-curl  laminating machine DS-380

Now it is possible to do one-sided lamination on an ordinary two-sided laminator. Obviously some material has to be used in place of one of the films: Kraft Paper can be used; it will stick to the film but can be trimmed off and discarded. Or, two rolls of single-sided lamination film can be used, with two items at once being placed back-to-back to be run through; they must be pretty well exactly the same size. But a problem here is that the laminations will almost certainly curl: single sided laminators have special design features to take care of this, but using a "Lay Flat" nylon film will help.

  • Adds new single side / doulbe side  Anti-curl functions

  • The distinctive anti-curl function

  • Adjustment lever can choose different position

  • Adds Trimming Cutter on left

  • Can operate A3 SIZE paper

Maximum:


  • Max. Width 340mm


  • Max. thickness up to 7mm


  • Film thickness up to 28mic

Single sided laminators are great for laminating shops and small print shops. A single side laminator is the perfect solution for high quality single side lamination of flyers, book covers, posters and more.


Model Name

DS-380

Laminting width

340mm

Laminating thickness

7mm

Laminating speed

3m/min

Laminating temperature

20-160℃

Control system

 8-bit microprocessor

Diameter of roll film

55mm

Power

110/120/220-240V
50/60HZ/1100W

The laminating workshop is preferably a dust-free workshop to ensure the filming effect. The dust on the equipment and on the laminating roller must be completely removed before lamination

When the laminating machine is running, it is forbidden to put your fingers into the two rollers to avoid getting your hands. The pressure of the machine's pressing roller is high. Do not touch it with your hands to prevent burns.
