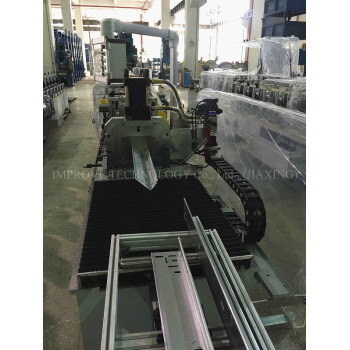

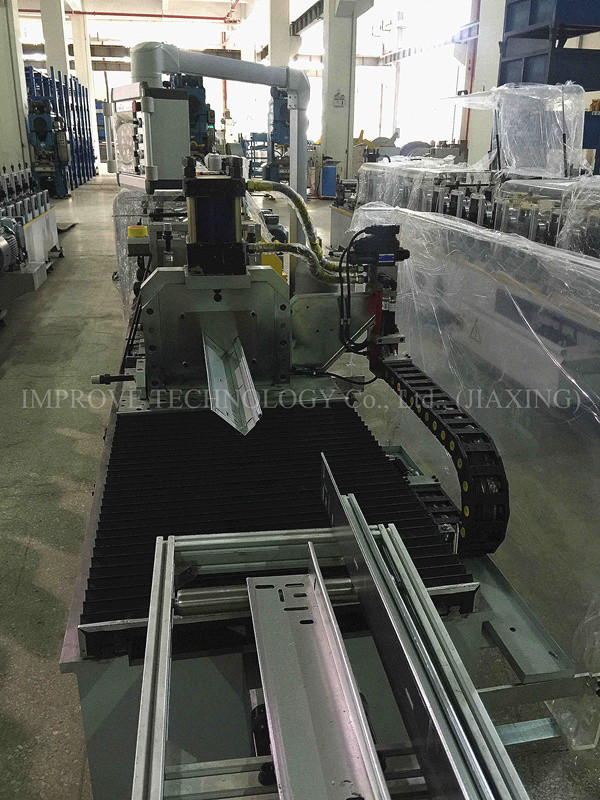

2"/3" L Profile Roll Forming Machine
group nameGarage Door Profile Machine
-
Min Order1 piece
payment methodL/C, T/T
-
update timeSat, 21 Mar 2026 04:08:28 GMT
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Profile Thickness | 1.5-2.0mm |
|---|---|
Working Speed | 10 meter/Min with punching |
Technical Process | Decoiler → Guided Feeding → Roll Forming → Punching → Cutting to Length (Serve fly shear cutting) → Collection Table |
Main Motor | 7.5KW (Brand: JIE made in China) |
Bearing | C & U |
Lining | 1) Seamless Steel Tube 2) Single Surface Thickness >= 5mm |
Hydraulic Station Power | 5.5KW, hoses to be fitted with JIC standard, brand : Aeroquip |
Cutting | Blade Material: Cr12 Mov, with heat treatment HR58℃-62℃ Hydraulic drive, non-stop fly shear cutting after forming |
VFD | SIEMENS OR SCHEIDER |
PLC | SIEMENS |
Collection Table | Normally 3 meter |
Terms & Conditions
1. Offer Validity: Be effect 120 days
2. Delivery terms: Within 120 business days after order confirmed by signature on sales contract.
3. Shipping port: FOB Shanghai
