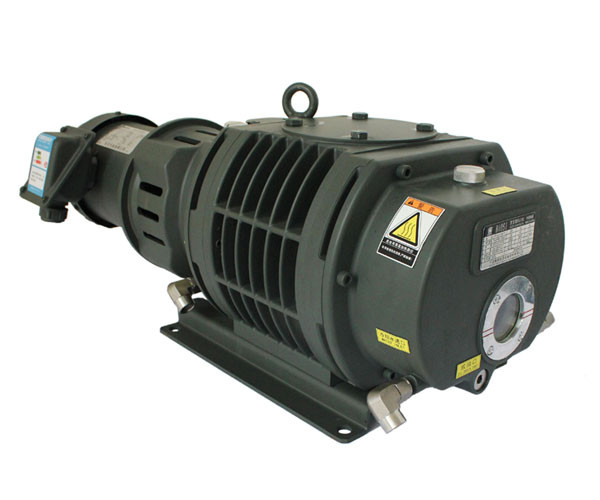

LVR70 High Quality roots pump Roots vacuum pump

  • group nameVacuum Pump

  • Min Order1 set

  • brand nameLary

  • modelLVR70

  • payment methodT/T

  • update timeTue, 27 Jun 2017 10:52:36 GMT

Paramtents

  • Product name roots vacuum pump

  • Application lighting, solar energy, semiconductor manufacturing equipment etc.

  • Motor Power 0.75KW

  • Phase three phase

  • Material aluminum

  • Voltage 380V

  • Oil Required 0.8L

  • Weight 51kgs

  • Rotating Speed 2950r/min

  • Dimension 695mm*345mm*300mm

Packging & Delivery

  • Weight51.00kg / set

  • Min Order1 set

Briefing

LVR70 High Quality roots pump Roots vacuum pump

Detailed

LVR70 High Quality roots pump Roots vacuum pump

Key words:

roots vacuum pump, vacuum pump, rootspump, vacuum roots pump, root pump, volumetric roots vacuum pump

Products Attributes:

            Product name: roots vacuum pump

            Application: lighting, solarenergy, semiconductor manufacturing equipment etc.

            Motor Power: 0.75KW

            Phase: three phase

            Material: aluminum

            Voltage: 380V

            Oil Required: 0.8L

            Weight: 51kgs

            Rotating Speed: 2950r/min

            Dimension: 695mm*345mm*300mm


Pictures




Description:

LVR70High Quality roots pump Roots vacuum pump

Rootsvacuum pump is mainly composed of 8-shaped rotors which synchronous rotate withhigh speed and two semi-circular chambers. It can improve the pumping rate aswell as vacuum degree greatly in effective working limit when combines withScrew vacuum pumps, rotary vane pumps, rotary plunger pump etc.


Features:

1.No lubricating oil in the pump chamber, get high purity vacuum.

2.Rotors made in MAZAK machining center and KAPP machine tools, have thecharacteristic of good geometric symmetry, low noise and long service life.

3.Aluminum alloy pump body, good for corrosion resistance and lose heat quickly.

4.Compacted structure, small size and light weight, quick start.



Specification:



Note: thedata of Ultimate Pressure is measured with Pirani gage, if use the Mcleod gagethe data should be 1×10-2 Pa.




Installation Diagram:



Application:

Lighting,solar energy, electronics, semiconductor, vacuum drying, vacuum casting,testing equipment, vacuum melting, vacuum degassing, vacuum coating industries,chemical pharmaceutical industry vacuum distillation.



Production& Inspection Equipment:

 Wehave modern standard workshop, a number of professional production lines, advancedproduction and testing equipment, a number of efficient technical R&D andproduction management team, as well as the scale productivity and perfectproduct quality control system.



Factory:









Company:

Ningbo Lary Industry Technology Co., Ltd is ajoint venture with Portugal TECNIROLO Engenharia Industrial S.A. Lary is anengineering & manufacturing enterprise which inherits the concept ofproviding customers with best services in Europe for more than twenty years. TecniRolo - Portugal andLary Industry - China are a group of companies that work as a global solutionprovider for an international network over of 16 countries.








Certification:




Customers:




Paymentsand Delivering:

Payments: 40% depositby T/T after confirming thedrawings and 60% balance by T/T before delivery.

Delivering: 90 -120 daysafter we confirmed both side.
