PP400 4PP420.0571-K44 B&R Touch Screen Panel Repair
group namePower Panel 400
-
Min Order1 piece
brand nameVICPAS
model4PP420.0571-K44
payment methodWestern Union, T/T, PayPal, Credit Card
-
update timeSun, 28 Apr 2024 06:01:08 GMT
Paramtents
Touch screen panel type Resistance touch screen
Size 5.7 inch
Brand B&R
Warranty 1 Year VICPAS Warranty
Model B&R Power Panel 400 4PP420.0571-K44
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Packging & Delivery
Min Order1 piece
Briefing
Detailed

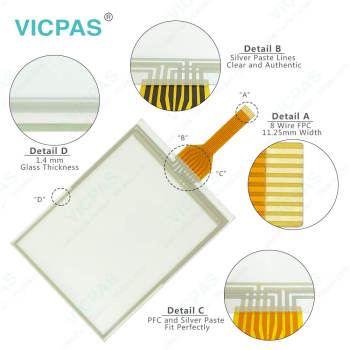

B&R Power Panel 400 4PP420.0571-K44 Front Overlay Touch Screen Panel Repair Replacement
VICPAS supply B and R Power Panel 400 4PP420.0571-K44 touchscreen panel and protective film for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.
The Power Panel 300/400 devices have a USB 2.0 (Universal Serial Bus) host controller with multiple USB ports, two of which are on the outside for easy user access. Power Panel devices are equipped with 2 hex switches that serve as operating mode switches. Switch positions 01 to FD are available for any purpose in an application and can be evaluated by the application program. Due to the complete ATX power supply support, the power button serves a number of functions, which can be configured in BIOS setup.
Specifications:
The table below describes the parameters of the 4PP420.0571-K44 Power Panel 400 Touchscreen Panel Front Overlay.
| Part Number : | 4PP420.0571-K44 |
| Product Line: | Power Panel 400 |
| Screen diagonal | 5.7 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related Power Panel 400 Series Part No. :
| B&R Power Panel 400 | Description | Inventory status |
| 4PP420-0571-K05 | B&R Power Panel 400 Touch Screen Panel Glass Repair | In Stock |
| 4PP420-0571-K15 | Power Panel 400 B&R Touch Panel Glass HMI | Available Now |
| 4PP420-0571-K44 | B and R Power Panel 400 Touch Digitizer Replacement | In Stock |
| 4PP420-0571-K49 | Power Panel 400 B and R HMI Touch Screen Organizer | In Stock |
| 4PP450-0571-K25 | Power Panel 400 HMI Touch Panel Glass Repair | In Stock |
| 4PP420-0571-K45 | Power Panel 400 B&R HMI Touch Screen Panel | Available Now |
| 4PP420-0571-K46 | Power Panel 400 B&R Overlay Touch Screen Monitor | In Stock |
| 4PP420-0571-K47 | Power Panel 400 B&R HMI Touch Screen Panel Glass | Available Now |
| 4PP420-0571-K04 | B&R Power Panel 400 HMI Touch Screen Front Overlay Replacement | In Stock |
| 4PP420-0571-K23 | B&R Power Panel 400 Touch Screen Panel Protective Film Repair Kit | In Stock |
| 4PP420-0844-K03 | B and R Power Panel 400 Touch Screen Hmi Touch Membrane | Available Now |
| B and R PP400 | Description | Inventory status |
B&R Power Panel 400 Manuals PDF Download:
FAQ:
Question: What is the procedure of creating a bootable USB flash drive for B&R 4PP420.0571-K44 upgrade files?
Answer:
• Connect the USB flash drive to the PC.
• If the drive list is not refreshed automatically, the list must be updated using the command Drives > Refresh.
• Mark the desired USB flash drive in the drive list.
• Change to the Action tab and select Install a B&R Update to a USB flash drive as type of action.
• Enter the path to the MS-DOS operating system files. If the files are part of a ZIP archive, then click on the button By ZIP file.... If the files are stored in a directory on the hard drive, then click on the button By folder....
• In the B&R Upgrade text box, it's also possible to enter the path to the ZIP file for the B&R Upgrade Disk and select the file.
• Click on the Start action button in the toolbar.
Question: What is the B&R Power Panel 4PP420.0571-K44 touch screen panel price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
4PP420.0571-44
4PP420.0571-K4
4P420.0571-K44
4PP420.O571-K44
4PP420.057l-K44
