group nameMagelis XBT F/FC
Min Order1 piece
brand nameVICPAS
modelMagelis XBTFC044510 XBTFC044610
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
update timeSun, 05 May 2024 22:14:50 GMT
Touch screen panel type Resistance touch screen
Warranty 365 days
Shipping 2-4 workdays
Name Magelis XBTFC044510 XBTFC044610
Brand Schneider
Size 10.4 inch
Min Order1 piece
Order each part separately is available

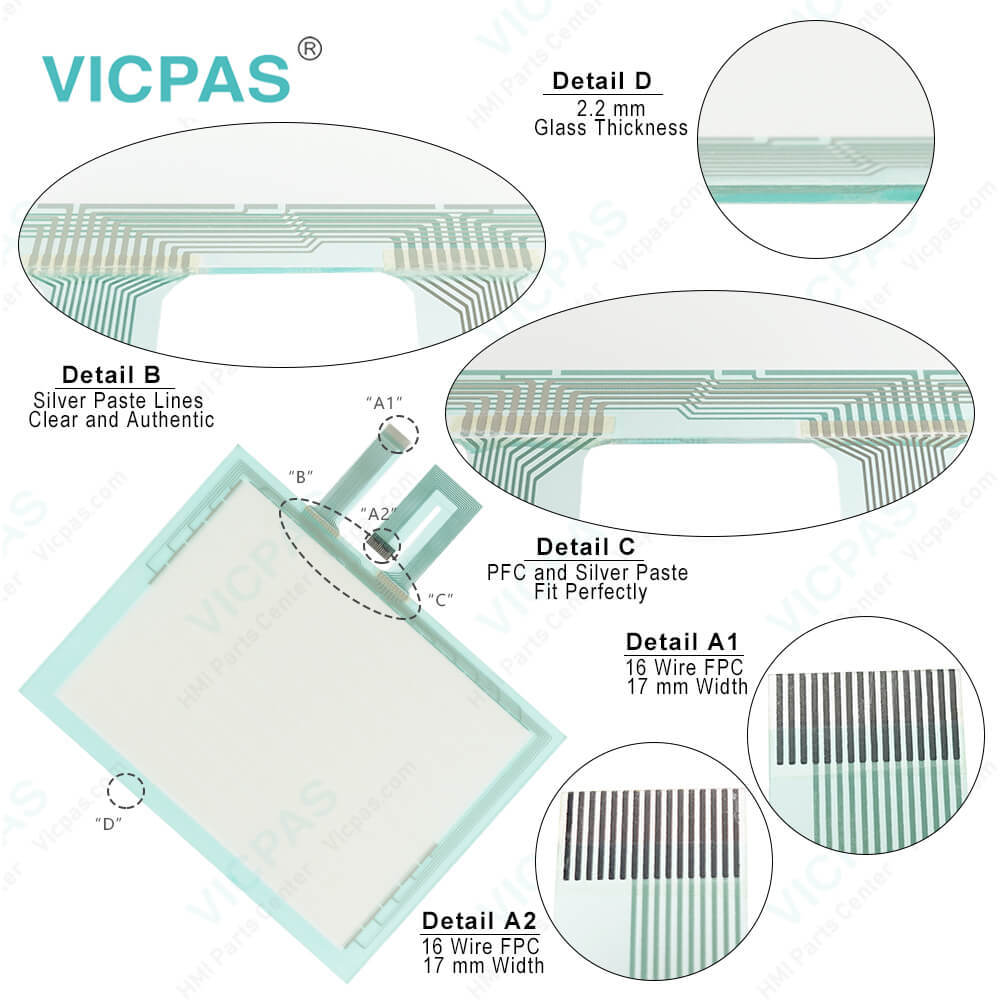

The Schneider XBTFC044510 and XBTFC044610 touch panel is used to replace the Magelis XBT GT 10.4-inch operator panel that make use of a resistive touch panel glass. The LCD display type is 10.4 in. (264 mm) TFT 256 colors with resistive matrix tactile feedback, and definition with 640 x 480 pixels.This touch panel measures 10.4 inches and it is a resistive type that can handle single-touch inputs only.
The XBT-FC044510 and XBT-FC044610 HMI uses the isolated RS-232 and RS-422/RS-485 serial communication ports for data transmission and for programming by a PC using the Connected Components Workbench Software version 8.0 or later, which is compatible with Microsoft Windows 8.0 and 8.1. It also supports a USB 2.0 host port for connection to external peripheral devices and a micro SD card slot for an external memory of up to 32 GB.
VICPAS supply Schneider HMI part to replace, make the HMI running. We provide 1 year warrant of most product, which include most of touch screen panel, membrane keypad and display.
The table below describes the parameters of the Magelis XBTFC044510 XBTFC044610 touchscreen.
Part Number : | XBTFC044510 XBTFC044610 |
Product Line: | Magelis XBT F Series |
Touchscreen Size: | 10.4 in. |
Warranty: | 1-Year Warranty |
Touch Technology: | Resistive |
Rated Voltage: | DC 5V 1mA |
Operating Temp.: | -10℃~+80℃ |
Storage Temp.: | -20℃~+70℃ |
lineation test: | ≥1.000.000 times |
Input Type: | ≥100.000 times |
Magelis XBT F Series | Description | Inventory status |
XBTFC022310 | Touch’n Click Terminals with 5.7-inch | In Stock |
XBTFC044310 | Terminals with 10.4 inch touch-sensitive screens | In Stock |
XBTFC044510 | Touch’n Click Terminals with 10.4-inch | In Stock |
XBTFC044610 | Terminals with 10.4 inch touch-sensitive screens | Call |
XBTFC064310 | Terminals with 10.4 inch touch-sensitive screens | In Stock |
XBTFC064510 | Terminals keyboard with 10.4'' Graphic touchscreen | In Stock |
XBTFC064610 | Operator Terminals Switch with 10.4 in. touchscreen | In Stock |
XBTFC084610 | Terminals Keypad with 10.4 in. Graphic Panel | Available Now |
XBTFC084310 | Operator Terminals with 10.4 inch touch panel | In Stock |
XBTFC084510 | Terminals 10.4'' Graphic Touch Panel | Available Now |
Magelis XBT F | Description | Inventory status |
Question: What is the keys type for the Schneider XBTFC044510 XBTFC044610 HMI Terminal?
Answer: The Magelis XBTFC044510 XBTFC044610 has multiple static and dynamic keys on keypad units.
Question: Is the keyboard of the unit replaceable?
Answer: Yes, the membrane keypad of XBTFC044510 XBTFC044610 can be replaceable.
Question: What is the price of XBTFC044510 XBTFC044610 operator Parts?
Answer: Submit a quote request, send VICPAS an email for best price.
