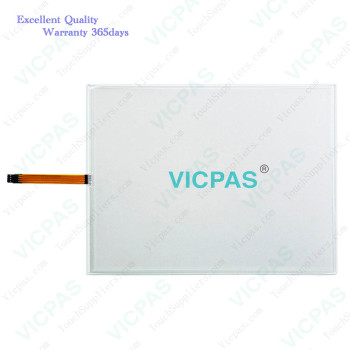

Beijer HMI X2 control 7 630001805 Touchscreen Replacement
group nameX2 Series HMI
-
Min Order1 piece
brand nameVICPAS
modelX2 control 7
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
-
update timeWed, 15 May 2024 05:24:19 GMT
Paramtents
Brand Beijer
Warranty 365 Days
Product Line X2 Control
Resolution 800 × 480 pixel
Supply Beijer X2 Control 7 Touchscreen
Part Number 630001805
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Beijer HMI X2 control 7 630001805 Touchscreen Repair Replacement
Beijer X2 control 7 630001805 7 INCH HMI with iX runtime HMI Repair kit
• 800 × 480 pixel (16:9) TFT-LCD touch screen
• 1.5 GB application memory
• Ethernet 2x100 Mbit
• EtherCAT as standard
• CODESYS control integrated
• CE, FCC, KCC, UL approvals
• DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals
X2 control panels combine industrial HMI and CODESYS PLC functionality in the same compact hardware. Panels range from ultra-compact 4-inch to 15-inch panels designed for demanding applications. Add standard distributed I/Os and you'll get an elegant, scalable and cost-effective solution that's cutting-edge.
VICPAS supply Beijer X2 control 7 Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 630001805 Beijer X2 control 7 HMI Parts.
| Brand: | Beijer |
| Part number: | 630001805 |
| Size: | 7 INCH |
| Warranty: | 365 Days Warranty |
| Product Line: | X2 control 7 |
| Size diagonal: | 800 × 480 pixel |
| Display type: | TFT-LCD |
| Touch type: | Resistive |
| Input voltage: | 20 - 30 V DC |
| Power: | 12W |
Beijer X2 control 7 Touch Panel HMI Manuals PDF Download:
FAQ:
Question: How to install the Beijer X2 control 7 Touch Panel?
Answer:1. Unpack and check the delivery. If damage is found, notify the supplier.
2. To cut a correct opening for the operator panel, use the cut out dimensionsin the outline drawing. Aseparate cut out drawing is available for download from theBeijer Electronics web site. Formore information, see sections Operator Panel Drawings andTechnicalData.
3. Install the operator panel into the cutout.
4. Secure the operator panel in position by screwing the slotted thumb screwclockwise, allowing the built-in bracket toflipout and tightenagainst thecabinet
5. Secure the operator panel in position using the built-in brackets or screws,depending on the panel type.
6. In caseswhere the front panel seal (IP54 or greater, NEMA-4X) is critical,a torquewrench shouldbeused to ensure all screws are torquedwithinthespecification above
Question: Why the Beijer X2 control 7 HMI have the chemical resistance?
Answer:Autoflex EBA180L covers the overlay surrounding the screen.
Question: What is Beijer X2 control 7 Touchscreen and Overlay HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
6000180563001805
63001805
63001805
63000805
