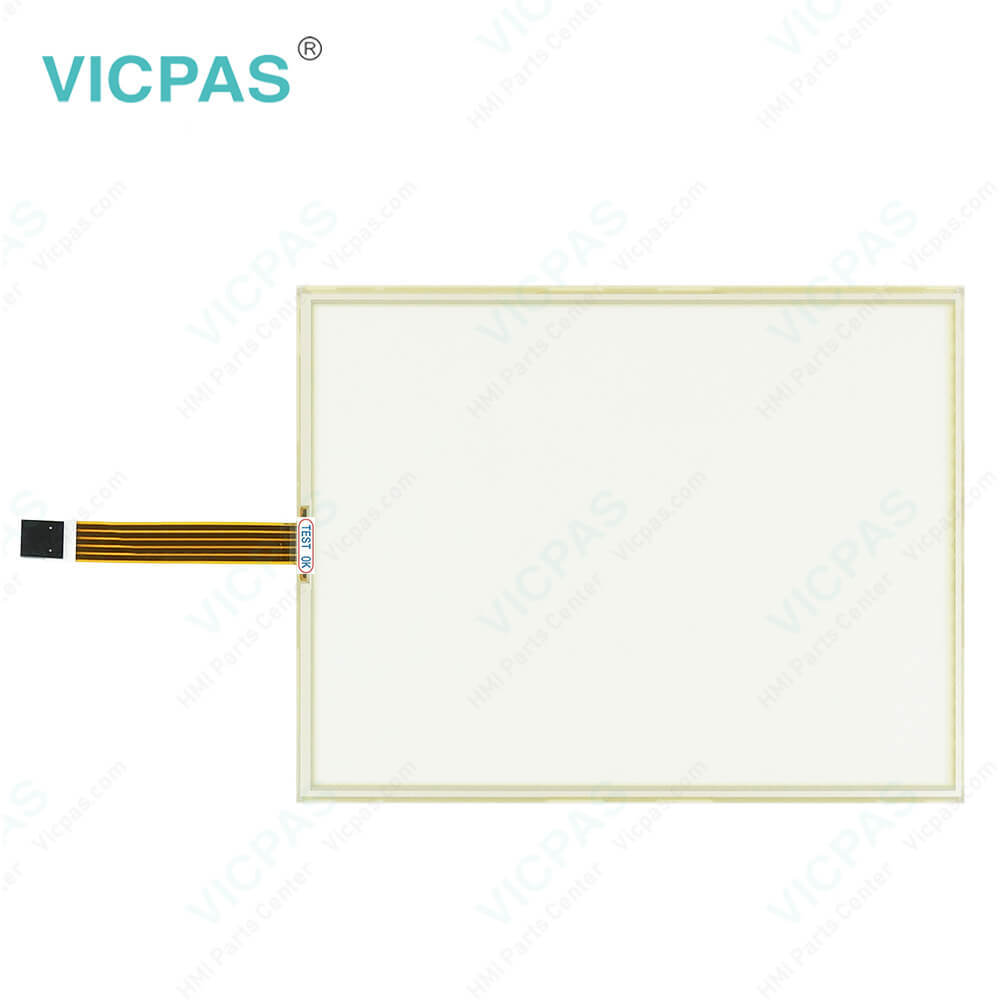

B&R 4PP28X.1043 Touch Digitizer Glass
group namePower Panel 100/200
-
Min Order1 piece
brand nameVICPAS
model4PP28X.1043
payment methodWestern Union, T/T, PayPal, Credit Card
-
update timeSun, 02 Jun 2024 15:07:39 GMT
Paramtents
Touch screen panel type Resistance touch screen
Size 10.4 inch
Brand B&R
Warranty 1 Year VICPAS Warranty
Model B&R Power Panel 200 4PP28X.1043
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Packging & Delivery
Min Order1 piece
Briefing
Detailed
B&R Power Panel 200 4PP28X.1043 Touch Panel Repair Replacement
Order each part separately is available
B&R Power Panel 200 Features
• 24 VDC supply voltage
• 2 USB 1.1 connections
• Ethernet 10/100 MBit interface
• CompactFlash card (type I) slot
• RS232 interface, modem-capable, not electrically isolated
• 2 operating mode switches (2 x 16 digit)
• 2 status LEDs (User or CompactFlash card access)
• Fan-free operation
• Touch screen (analog resistive), function keys or both)
• Filter glass (multiple-coated, non-reflective)
• Horizontal and vertical mounting orientations, numeric and alphanumeric keys)
• Software compatible with B&R 2000 PLC family
• Maximum 2 aPCI slots
• BIOS or Automation Runtime operating system
• Real-time clock (battery-buffered)
• Up to 128 MB SDRAM main memory
The Power Panel is equipped with a PC-compatible serial interface with a 16-byte FIFO buffer. This non-electrically isolated interface is primarily intended for programming Power Panel devices using Automation Studio. The RS232 can also be used as a general interface (e.g. third-party connections, barcode reader, etc.).
Specifications:
The table below describes the parameters of the 4PP28X.1043 Power Panel 200 Touchscreen Panel.
| Part Number : | 4PP28X.1043 |
| Product Line: | Power Panel 200 |
| Screen diagonal | 10.4 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related Power Panel 200 Series Part No. :
| Power Panel 200 | Description | Inventory status |
| 4PP281.1043-75 | B&R Power Panel 200 Membrane Keyboard Keypad | In Stock |
| 4PP281.1043-B5 | PP200 B and R Membrane Keypad Switch Repair | Available Now |
| 4PP282.1043-75 | B&R Power Panel 200 Operator Panel Keypad | In Stock |
| 4PP282.1043-B5 | B and R Power Panel 200 Operator Keyboard Repair | In Stock |
| 4PP28X.1043 | Power Panel 200 B&R HMI Touch Screen Organizer | In Stock |
| 4PP250.1214-K01 | B and R Power Panel 200 Touch Panel Glass Repair | In Stock |
| 4PP220.1505-75 | PP200 B&R Touch Screen Panel Front Overlay Keyboard Membrane | Available Now |
| 4PP220.1505-B5 | Power Panel 200 B&R Touch Membrane Protective Film Switch Membrane | In Stock |
| 4PP220.1505-K03 | B and R Power Panel 200 Touch Digitizer Glass | Available Now |
| 4PP251.1505-75 | Power Panel 200 B&R HMI Membrane Keyboard Keypad | In Stock |
| 4PP251.1505-B5 | B and R Power Panel 200 Operator Panel Keypad Repair | In Stock |
| 4PP280.1505-75 | PP200 B&R Touch Screen Organizer Front Overlay Keyboard Membrane | Available Now |
| 4PP280.1505-B5 | B&R PP200 Touch Screen Tablet Front Overlay Membrane Keypad | In Stock |
| 4PP281.1505-75 | B&R Power Panel 200 Membrane Keypad Switch | In Stock |
| 4PP281.1505-B5 | Power Panel 200 B and R Membrane Keyboard Keypad | Available Now |
| B and R PP200 | Description | Inventory status |
FAQ:
Question: What causes Power Panel 200 B&R 4PP28X.1043 screen burn-in?
Answer:
• Static images
• No screensaver
• Sharp transitions in contrast (e.g. black/white)
• High ambient temperatures
• Operation outside of specifications
Question:How can the B&R Power Panel 200 4PP28X.1043 service life of the backlight be extended?
Answer:
• By setting the display brightness to the lowest value that is still comfortable for the eyes
• By using dark images
• By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time
Common misspellings:
4PP8X.1043
4PP28X.043
4PP28X.l043
4PP28X.1O43
4PP28X.10043
