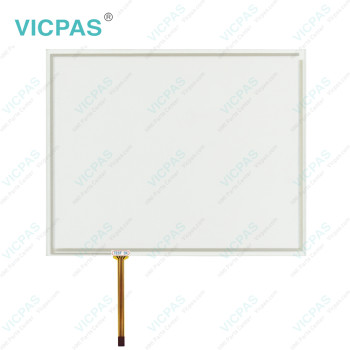

DMC TTP-3406S1 Touch Digitizer Glass Replacement
Transparent electrodes are formed on one side of both the top and bottom of the TP-3406S1 Touch Panel device, and one side constitutes the X-coordinate circuit and the other side the Y-coordinate circuit. The voltage of the touched position is detected. Semi-Standard products TP-3406S1 Panel Glass based on standard products. We customized the products such as size changes, cover glass mounting, and surface treatments that are often requested. VICPAS provide DMC Semi-customized products TP-3406S1 Touch Scren that are particularly requested with combinations and specification that match the application. Ideal for alternatives where conditions are not met due to time and cost restrictions, or for applications that require quick evaluation with developed products.
TP-3406S1 HMI touch glass size: 10.4 inch, other general size is 3.0'' to 22'' . TP-3406S1 touch digitizer glass adopt to panel display device. TP-3406S1 touch screen temperature operating range: -10° C ~ 60° C. TP-3406S1 touch panel display Resistance 300Ω < X Axis <900Ω , 200Ω < Y Axis <800Ω (Varies with different size). TP-3406S1 touchscreen power supply: USB or RS232. TP-3406S1 MMI touch glass operation system including : Linux / DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS etc. TP-3406S1 touchscreen touch times are more than 1 million touches.
Product Specification:
Size : 10.4 inch;
Shipping : 2~3 Workdays
Warranty : 365 Days
Altitude Up to 3, 000m
Storage Range: -20° C ~ 70° C
Temperature Operating Range: -10° C ~ 60° C
Application:
* Light Industrial equipment, Home appliances.
* MID, Tablet PC, Digital photo frame, Car GPS.
* POS. All-in-one. KIOSK. Advertising display. ATM.
* Medical device/Medical equipment/HMI/Industrial computer.
