91-28471-F00 Touch Screen Glass Repair
group nameHMI Touch Screen Panel
-
Min Order1 piece
brand nameVICPAS
model91-28471-F00
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
-
update timeSun, 02 Jun 2024 21:35:52 GMT
Paramtents
Warranty 365 Days
Shipping 2-4 workdays
Brand Vicpas
Model Number 91-28471-F00
Supply Parts Touch Screen Panel
Size 12.1''
Touchscreen 5-Wire-Resisitive
Packging & Delivery
Min Order1 piece
Briefing
Detailed

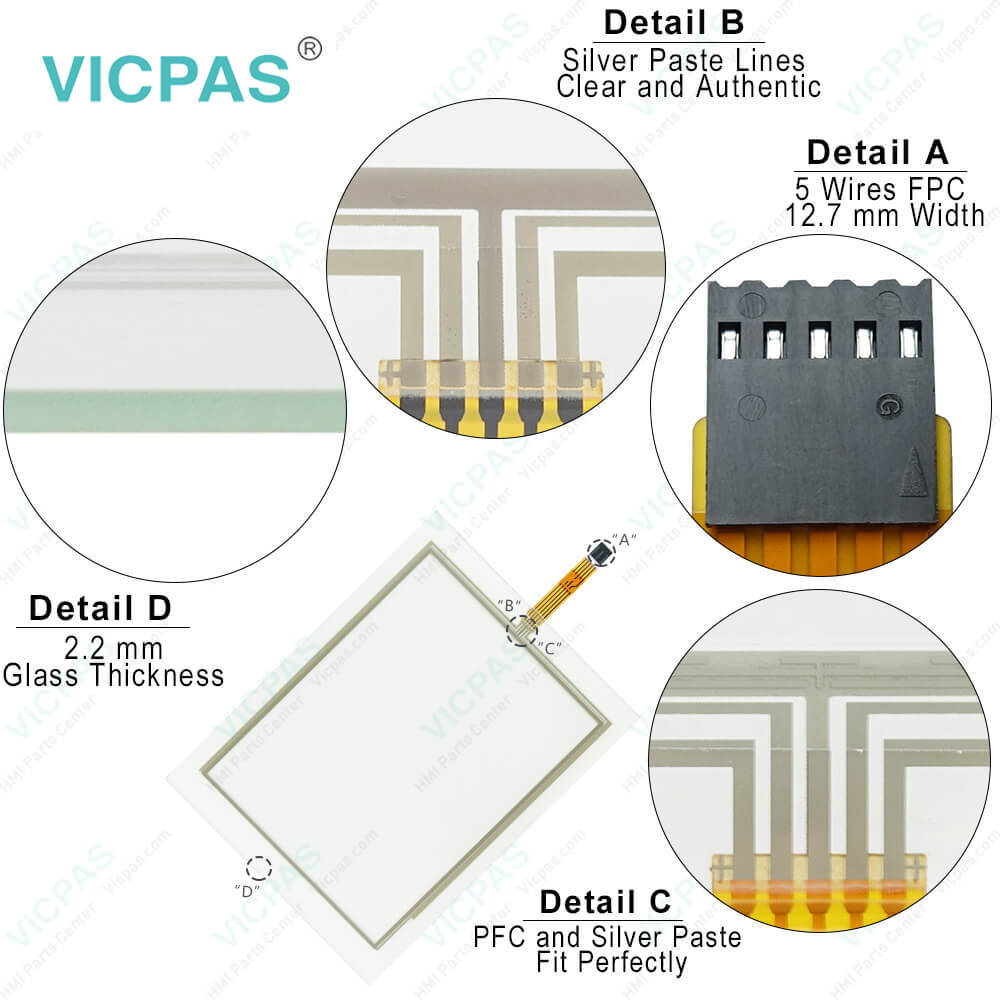

91-28471-F00 Touch Digitizer Glass Replacement
Environmental Conditions
91-28471-F00 Touchscreen is engineered to withstand a wide range of environmental conditions, ensuring optimal performance and reliability. It operates efficiently within humidity levels ranging from 10 to 95% RH at a temperature of 40°C/104°F, without succumbing to condensation. Featuring an IP66-rated front panel, 91-28471-F00 HMI Panel Screen offers robust protection against ingress, safeguarding against dust and water intrusion. Operating temperature capabilities of 91-28471-F00 MMI Touch Glass range from -20 ~ 60 °C/-4 ~ 140 °F, even in the absence of airflow, while storage temperatures can be maintained between -20~70°C (-4~158°F）. Additionally, the TPC-317 boasts vibration protection, capable of withstanding 1 Grms of vibration (5~500 Hz) during operation when utilizing SSD technology, ensuring uninterrupted functionality even under random vibrations.
Panel Mounting for 91-28471-F00 Touch Panel
1. Position the TPC panel computer against the panel mount.
2. Attach clamps to the side of the TPC panel computer.
3. Secure the clamps in place using the M4 x 25L screws provided in the accessory box. Torque:5 kgf-cm(0.5 Nm)
Specifications:
The table below describes the parameters of 91-28471-F00 Touch Screen Monitor.
| Display Size: | 12.1'' |
| Relative Humidity: | 95% RH |
| Display Resolution: | 1024 x 768 Pixels |
| Warranty: | 1-Year Warranty |
| Storage Temperature: | -20~70°C (-4~158°F） |
| Operating Temperature: | -20 ~ 60 °C/-4 ~ 140 °F |
| Environment: | Free From Corrosive Gases |
| Display Type: | XGA TFT LED LCD |
| Lifespan (Touches): | More Than 36 Million |
| Touchscreen Type: | 5-wire Analog Resistive |
Advantech HMI Manuals PDF Download:
FAQ:
Question: How to upkeep 91-28471-F00 Touch Screen?
Answer: To clean 91-28471-F00 Touch Screen Display, utilize solely a damp cloth. Avoid employing liquid or spray detergents. When installing, ensure the Touch Digitizer Glass is positioned on a stable surface. Prevent direct exposure to sunlight for the Touch Screen Film.
Question: What is the lifespan of 91-28471-F00 Touch Screen Display?
Answer: The lifespan of 91-28471-F00 Touch Panel is 36 million touches at a single point.
Common misspellings:
1-28471-F00
91-2471-F00
91-28471-F0
91-284471-F00
9-128471-F00
19-28471-F00
