7685T-15OD 7685ST-15OD 7685T-15C 7685ST-15C Touch Screen Panel Replacement
group nameCutler-Hammer Panelmate
-
Min Order1 piece
brand nameVICPAS
model7685T-15OD 7685ST-15OD 7685T-15C 7685ST-15C
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
-
update timeSat, 23 May 2026 07:48:44 GMT
Paramtents
Product Line Cutler-Hammer Panelmate
Warranty 1 Year
Shipping Time 3-5 Days
Supply Parts Touch Screen Tablet
Environment Free From Corrosive Gases
Touch Type Resistive
Packging & Delivery
Min Order1 piece
Briefing
Detailed

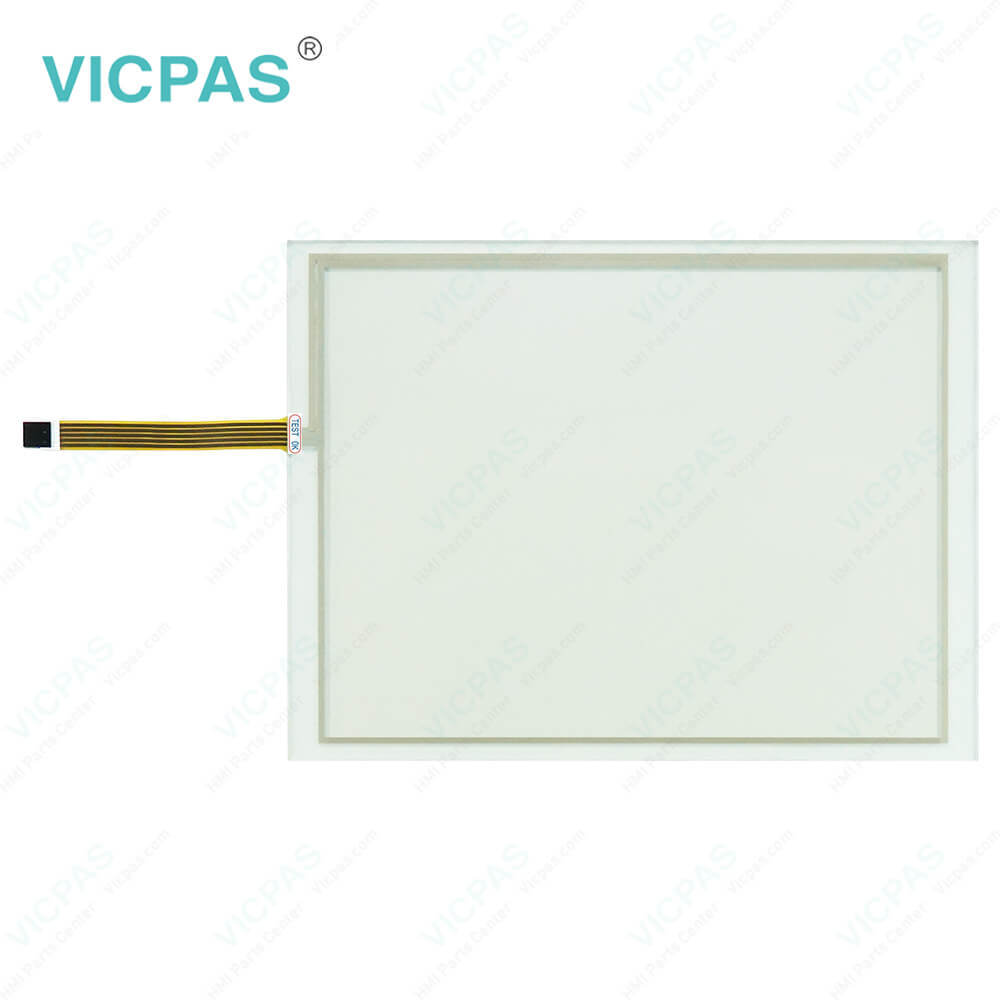

Eaton 7685T-15OD 7685ST-15OD 7685T-15C 7685ST-15C Touch Digitizer Glass Replacement
If Eaton Cutler Hammer 7685T-15OD 7685ST-15OD 7685T-15C 7685ST-15C Touch Screen Film does not function at all or it is unresponsive, first check the integrity of the cable and connectors to ensure they are properly connected and not damaged. It is recommended to perform a Keypad Test to further diagnose the issue. Select Keypad Test and press the control button labeled “Execute”. As each key is pressed, it will be identified on the display screen, allowing you to verify whether it is sending signals correctly to the PanelMate unit. Be sure to test all keys, and press the
Specifications:
The table below describes the parameters of Eaton 7685T-15OD 7685ST-15OD 7685T-15C 7685ST-15C HMI Touch Glass.
| Shipping Time: | 3-5 Days |
| Cooling Method: | Natural Air Cooling |
| Warranty: | 365 Days |
| Storage Temperature: | -20 °C ... +60 °C |
| Brand: | Vicpas |
| Operating Temperature: | 0 °C ... +50 °C |
| Environment: | Free From Corrosive Gases |
| Product Line: | Cutler-Hammer Panelmate |
| Relative Humidity: | 95% |
| Light Transmission: | Above 75% |
Related Eaton Cutler-Hammer Panelmate Part No. :
| Cutler-Hammer Panelmate HMI | Description | Inventory status |
| 7685T-10C | Eaton Cutler-Hammer Panelmate Touch Panel Replacement | In Stock |
| 7685ST-10C | Eaton Cutler-Hammer Panelmate HMI Touch Glass Repair | Available Now |
| 7685T-12C | Eaton Cutler-Hammer Panelmate Touch Screen Film Replacement | In Stock |
| 7685ST-12C | Eaton Cutler-Hammer Panelmate Touch Screen Tablet Repair | Available Now |
| 7685T-15E | Eaton Cutler-Hammer Panelmate Touch Digitizer Replacement | In Stock |
| Cutler Hammer 7685ST-15E 92-02166-00 | Eaton Cutler-Hammer Panelmate Touch Screen Display Repair | Available Now |
| 7685T-15OD | Eaton Cutler-Hammer Panelmate Touch Screen Monitor Replacement | In Stock |
| 7685ST-15OD | Eaton Cutler-Hammer Panelmate Touch Screen Glass Repair | Available Now |
| 7685T-15C | Eaton Cutler-Hammer Panelmate Touch Screen Panel Replacement | In Stock |
| 7685ST-15C | Eaton Cutler-Hammer Panelmate HMI Touch Glass Repair | Available Now |
| 7685T-8E | Eaton Cutler-Hammer Panelmate Touchscreen Replacement | In Stock |
| 7685T-10E | Eaton Cutler-Hammer Panelmate Touch Membrane Repair | Available Now |
| 7685ST-10E | Eaton Cutler-Hammer Panelmate Touch Digitizer Glass Replacement | In Stock |
| 7685T-12E | Eaton Cutler-Hammer Panelmate Touch Screen Tablet Repair | Available Now |
| 7685ST-12E | Eaton Cutler-Hammer Panelmate Touch Screen Film Replacement | In Stock |
| Cutler-Hammer Panelmate HMI | Description | Inventory status |
Eaton Cutler-Hammer Panelmate Manuals PDF Download:
FAQ:
Question: What should be avoided when using or cleaning Eaton Cutler-Hammer Panelmate 7685T-15OD 7685ST-15OD 7685T-15C 7685ST-15C Touch Screen Film?
Answer: Never use foreign objects such as pens, screwdrivers, or other sharp tools to operate the touchscreen. These objects may damage the touch surface and cause unreliable operation or touchscreen failure. When cleaning the touchscreen, avoid using solvents, abrasive cleaners, or other harsh chemical compounds, as they may permanently damage the touchscreen surface. For best results, use appropriate non-abrasive cleaning materials and gentle cleaning methods.
Question: How can I adjust the display contrast on the PanelMate unit?
Answer: Units with grayscale or dual-scan color displays support software-controlled contrast adjustment. To adjust the contrast, place the unit in Run Mode, then go to Get Page → More → Setup Page → Adjust Contrast. Use the Lighter and Darker control buttons to achieve the desired display effect. After adjustment, press Save Setting to keep the new contrast level, or press Cancel to return to the previous setting. The unit will restore the last saved contrast setting after power cycling.
Common misspellings:
7685T-150D7685T-115OD
7685T15OD
7658ST-15OD
7686ST-15OD
7685ST-15DO
7685T-151C
7685T15C
7658T-15C
7685ST-1C
7685SC-15C
7685ST-51C
