1 - 1 unit
group nameRefrigerated air dryer
Min Order1 unit
brand nameSHANLI
modelSLAD-6NF
payment methodL/C, D/A, D/P, Western Union, T/T
update timeMon, 29 Apr 2024 19:03:29 GMT
Air inlet temp ≤60°C
Cooling way Air-cooled
Ambient temp ≤50°C
Pressure dew point 2~10°C
Air inlet pressure 0.6~1.6MPa
Heat exchanger plate-fin heat exchanger
Place of origin Hangzhou, China
Capacity 6.5m3/min
Warranty 18 months
Color depend on requirement
Size105cm x 64cm x 76cm
Weight160.00kg / unit
Min Order1 unit
Product name: Air-cooled refrigerated air dryer
Product model: SLAD-6NF
Technical Specifications
● Pressure range: 0.6-1.6 Mpa
● Max air inlet temp.: 60 Deg C
● Max ambient temp.: 50 Deg C
● Cooling method: air cooled type / water-cooled type
● Pressure dew point: 5 Deg C
● Power: 220/380V-1PH-50HZ
● Refrigerant: R-22 (R-407C, R-134A as optional)
Note: Refrigerated air dryer without metal box board for over 80 m3/ min. Other special standards can be customized.
Performance Parameters
Refrigerated Compressed Air Dryer | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Model | Flow Capacity (Nm3/min) | Voltage (V) | Fan Power (W) | Pipe Diameter | Air Inlet Pressure (Mpa) | Net Weight (Kg) | Length (mm) | Width (mm) | Height (mm) | Air Flow (N3/h) |
SLAD-0.5NF | 0.65 | 220 | 1x67 | G1/2" | 0.6-1.0 MPa | 45 | 750 | 430 | 610 | 760 |
SLAD-1NF | 1.2 | 220 | 1x67 | G1" | 70 | 780 | 450 | 610 | 760 | |
SLAD-2NF | 2.5 | 220 | 1x95 | G1" | 110 | 800 | 460 | 720 | 1580 | |
SLAD-3NF | 3.6 | 220 | 1x150 | G1" | 130 | 950 | 480 | 720 | 3150 | |
SLAD-4.5NF | 5 | 220 | 1x240 | G1 1/2" | 150 | 1170 | 540 | 750 | 5580 | |
SLAD-6NF | 6.8 | 220 | 2x150 | G1 1/2" | 160 | 1350 | 520 | 753 | 6300 | |
SLAD-8NF | 8.5 | 220 | 2x195 | G2" | 200 | 1100 | 670 | 1098 | 8470 | |
SLAD-10NF | 10.9 | 380 | 2x195 | G2" | 250 | 1200 | 670 | 1098 | 8470 | |
SLAD-12NF | 12.8 | 380 | 2x195 | G2" | 300 | 1200 | 670 | 1048 | 8470 | |
SLAD-15NF | 16 | 380 | 2x190 | DN65 | 320 | 1460 | 750 | 1630 | 8470 | |
SLAD-20NF | 22 | 380 | 2x240 | DN65 | 420 | 1670 | 800 | 1663 | 11160 | |
SLAD-25NF | 26.8 | 380 | 2x240 | DN80 | 550 | 1820 | 800 | 1713 | 11160 | |
SLAD-30NF | 32 | 380 | 2x380 | DN80 | 650 | 1900 | 860 | 1875 | 15240 | |
SLAD-40NF | 43.5 | 380 | 3x240 | DN100 | 2200 | 2200 | 930 | 1941 | 16740 | |
SLAD-50NF | 53 | 380 | 3x380 | DN100 | 2450 | 2450 | 900 | 2110 | 22860 | |
SLAD-60NF | 67 | 380 | 4x380 | DN125 | 2140 | 2140 | 1450 | 1787 | 30480 | |
SLAD-80NF | 90 | 380 | 4x550 | DN125 | 2070 | 2070 | 1600 | 2029 | 42400 |
Company Information

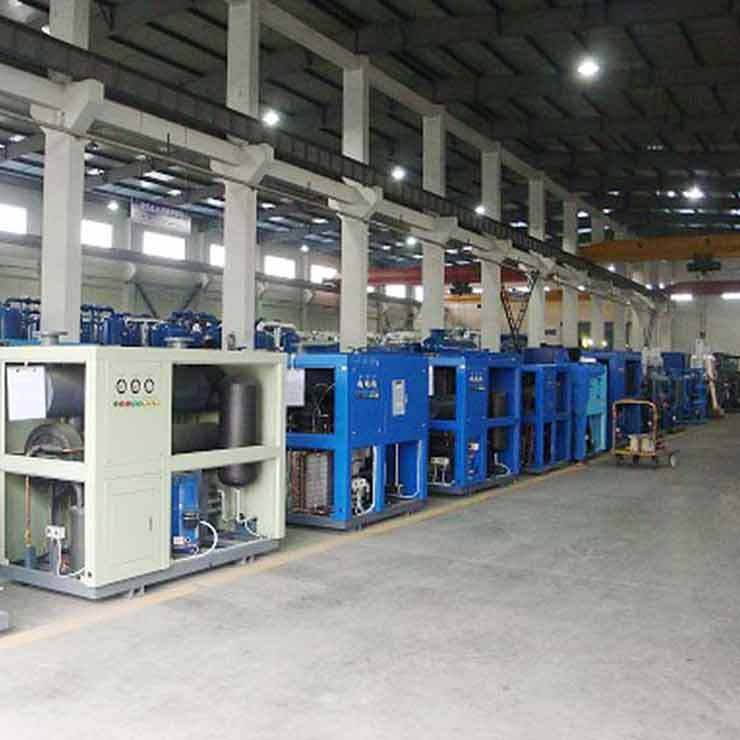

Established in 1997, Hangzhou Shanli Purify Equipment Corporation is an enterprise specialized in design, development
and production of compressed air dryers, filters and other purification equipments. Our company has a workshop of
30, 000 square meters and more than 300 staff. Shanli has become one of the largest refrigerated air dryer manufacturers
in the Chinese purification industry with the top sales turnover. Our self-design and self-made equipment is compatible with many
famous brands of air compressor to efficiently remove water, oil and dustfrom compressed air. On basis of IS0 9001
certification standard, our design, production, test and services of the machine are all well managed and strictly
controlled since year 2001.
Hangzhou Shanli
Add: No.8,Liangzhan Road, Renhe Street,Hangzhou, 311107, China
Tel:86-571-86392999
Fax:86-571-86392998
