Titanium clad Copper processing busbar
Titanium clad Copper processing busbarTitanium clad Copper processing busbarTitanium clad Copper processing busbarTitanium clad Copper processing busbarTitanium clad Copper processing busbar

Titanium clad Copper processing busbar

  • group nameElectroplating and Copper recovery industry

  • Min Order1 piece

  • brand nameSpecial Steel Titanium Industry

  • model27mm*12mm*drawing

  • payment methodL/C, D/P

  • update timeFri, 18 Oct 2019 01:11:09 GMT

Paramtents

  • Ti:Gr2 Cu:C11000

Packging & Delivery

  • Min Order1 piece

Briefing

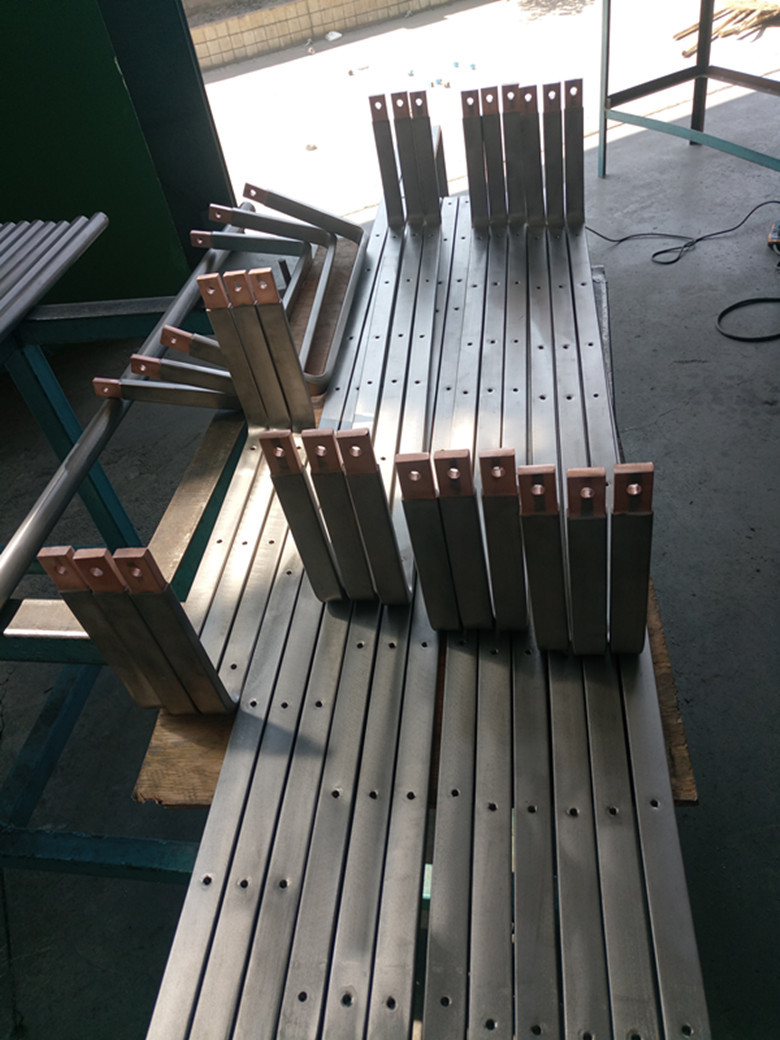

Titanium clad Copper busbar

Ti:Gr2
Cu:C11000
Size:27mm(wideth)*12mm(thickness)*drawing (Ti thickness:1.0mm)


Detailed

Titanium clad Copper busbar
Ti:Gr2
Cu:C11000
Size:27mm(wideth)*12mm(thickness)*drawing (Ti thickness:1.0mm)

TitaniumCopper Composite Bar Production Process

  Our company production of Titanium Copper Composite Barimplement national standards GB/T12769-2003, production technology extrusion andhot rolling technology process.

Extrusion process: put the base material copper bar and thecomposite material titanium tube set togetherafter extrusionprocess, make the copper bar and the titanium tube preliminary compositetogetherformation of titanium copper billet material.

 Hot rolling process technology: put the titanium copper billet materialinto the hole pattern rolling mill, hot rolled into required size, make thetitanium and copper reach the certain composite strength. Then straightening, surfacetreatment processes such as, eventually become a finished product.

 Detection means for titanium copper composite bar: Ultrasonic flawdetection, inspection titanium copper composite bar joint.

Penetration testing, inspection titaniumcopper composite bar

welding conditions.
