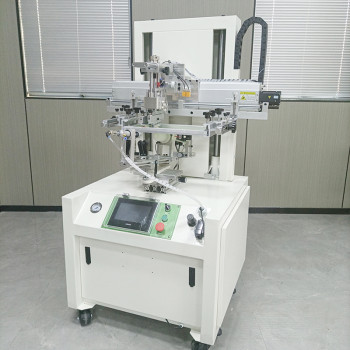

Servo Curved Screen Printing Machine TX-500SF For Round Products
group nameCurved Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-500SF
payment methodT/T
-
update timeFri, 05 Dec 2025 19:59:51 GMT
Paramtents
Max printing area 500*200mm
Substrate Diameter ≤160mm
Printing Speed 800pcs/hour
Max screen frame 700*350mm
Max Printing length 300mm
Machine Weight 272kg
Power Supply 220V,50/60/Hz/100W
Machine Dimension L1040*W990*H1700mm
Air pressure 4-6kgf/cm2
Application Areas Cups, bottles, cans, metal pipes,
Packging & Delivery
Size120cm x100cm x170cm
Weight272kg / set
Min Order1 set
Briefing
This servo curved screen printing machine is suitable for surface pattern printing of various round products.
Detailed
Introduction TX-500SF Servo curved screen printing machine
This servo curved screen printing machine is suitable for high-precision printing of various cosmetic eyebrow pencils, containers, pharmaceutical containers, food containers, electronic devices, toys, cabinets and other surface patterns and text.
Main parameters
Model : TX-500SF
Max Printing area: 200*500mm
Air pressure: 5 bar
Rated voltage/Power: 220V/50HZ/1000W
Max printing speed: 800-1000（PCS/H）
Max screen frame: 300*600mm
printing size: Φ150*200mm
Printing length: ≤250mm
Dimension Size : 1150*950*1600mm
Gross weight : 272(KG)
Features:
Compared with ordinary curved surface color registration, it is more convenient that it does not require positioning points, and the infrared light eye has higher positioning and color registration accuracy, which is suitable for enterprise product development and small batch printing.
This screen printing machine is available to print on plastic, glass and metal goods, like cups, plastic bottles, glass bottles, pistons, bottle ROPP caps, jars, plastic flexible cosmetic soft tubes and so on. Widely used for industries of daily chemical, food,beverage, pharmaceutical, chemical, personalized water bottle business, cosmetic bottle manufacture, etc.
Main performance
1. PLC programming, touching screen, simple to operate, easy to use
2. Built in digitalcounts for production output
3. Facilitate to placement of the productbenefit from special design famous air cylinders
4. Servo motor drive rotating and printing head ensure high precision
5. Self-balance scraper technology and ink cover blade
6. Printing Strokeand rotation by digital adjustments, printing speed controllable.
7. Convenient operating the height of the printing beam by hand wheel.
8. Easy to disassemble and cleaning the screen plate due to the independent design of lifting printing head including scraper
and squeegee;
9. Quality photoelectricity sensor and perfect fault self-detect
10. Metal structure，running steady, foot switch for starter.
Details pictutre
Printing samples
