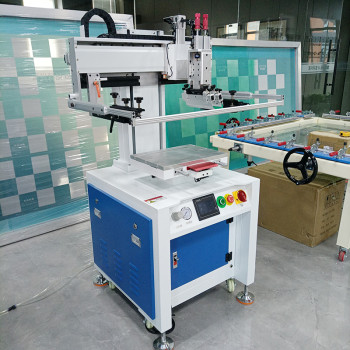

Double Servo Motor Flat Screen Printing Machine TX-2030SF for Metal and Plastic Signs
group nameSemi-Automatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-2030SF
payment methodT/T
-
update timeSat, 06 Dec 2025 15:21:06 GMT
Packging & Delivery
Weight200kg / set
Min Order1 set
Briefing
Double Servo Flat Screen Printing Machine is suitable for electronic panels, glass panels, ceramic substrates, metal plates, PCB boards, and other products printing, especially for the small items which need high accuracy printing.
Detailed
Introduction
Application
Double Servo Flat Screen Printing Machine is suitable for electronic panels, glass panels, ceramic substrates, metal plates, PCB boards, and other products printing, especially for the small items which need high accuracy printing.Specification
Max Print Area: 20*30cm
Working Table: 30*40cm
Screen Frame Size Max: 50*70cm(OD)
Printing Accuracy: ±0.02mm
Substrate Thickness (Printable): 200mm
Max Printing SPeed: 1400（PCS/H）
Power Supply: 220V/1.5KW
Air pressure: 0.5-0.7Mpa
Features
★Main performance
① Mitsubishi PLC program PLC program control circuit, human-machine interface control, humanized operation.
② Vertical structure, screen vertical up and down, printing head left and right movement.
③ Printing and screen lifting use independent drive source, coordinated action, stable and adjustable speed.
④ Panasonic servo system drives printing knife holder, photoelectric eye controls stroke, independent adjustment.
⑤ Printing drives Panasonic servo motor, stable action.
⑥ The printing platform is equipped with precision fine-tuning handles in horizontal and vertical directions, accurate fine-tuning, and convenient color registration.
⑦ There are three printing modes: manual/semi-automatic/fully automatic, and the indirect time of automatic printing is digitally controlled (1~9 seconds).
⑧ Independently designed head lifting device, easy loading and unloading of scraper/ink return knife, screen and cleaning of screen.
⑨ The left and right screen clamp arms are equipped with plate spacing adjustment device, which is easy to adjust.
⑩ The angle and balance of scraping and ink return can be adjusted.
⑪ The printing table adopts a vacuum suction work surface to facilitate the fixing of printing sheets.
Machine image
Printing samples
Plastic Labels
Ceramic substrate
Solar Photovoltaic Panels
