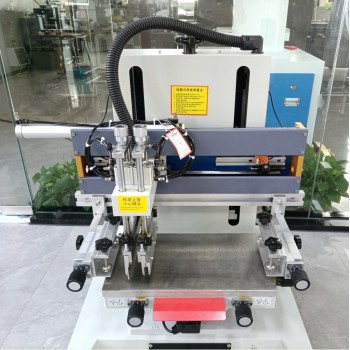

Small Desktop Flat Screen Printing Machine TX-2030S for Name plate
group nameSemi-Automatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-2030S
payment methodT/T
-
update timeFri, 05 Dec 2025 23:04:59 GMT
Paramtents
Printing Thickness ≤80mm
Max printing area 200*300mm
Air pressure 4.0～6.0 kfg/c㎡
Size of printing table 200*400mm
Rated voltage/Power 220V/50HZ/400W
Max size of screen frame 400*600mm
Printing speed 1000pcs/h
Package size 1000*680*680mm
Weight 100KG
Packging & Delivery
Weight100kg / set
Min Order1 set
Briefing
The small desktop screen printing machine is suitable for precision flat screen printing of various papers, scratch cards, glass, self-adhesives, single-sided, double-sided, multi-layer circuit (PCB), liquid green oil, cold light (EL) and flexible circuit boards.
Detailed

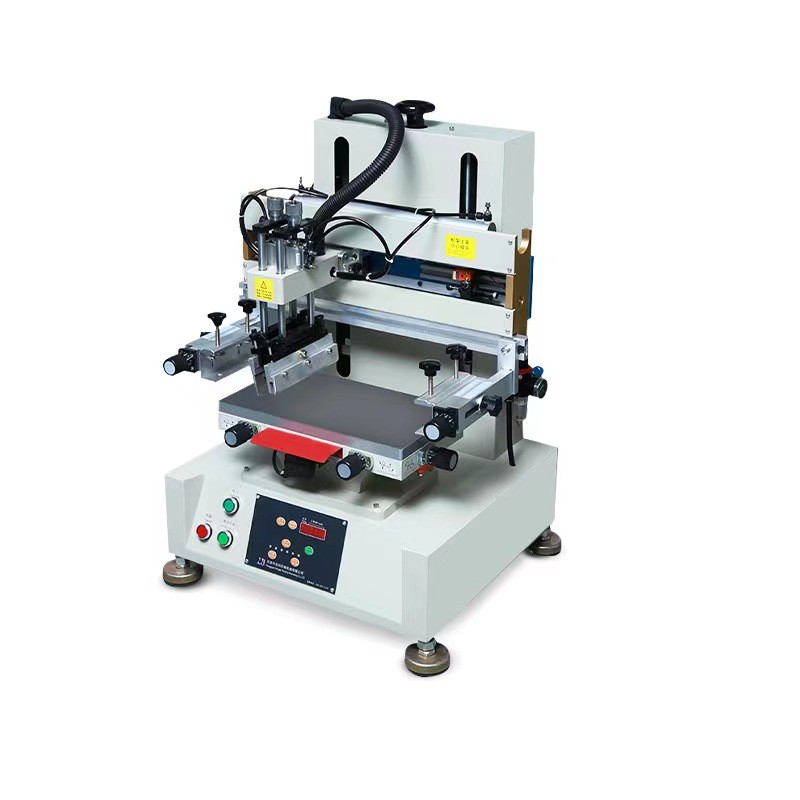

Small Desktop Flat Screen Printing Machine TX-2030S Introduction
The small desktop screen printing machine is suitable for precision flat screen printing of various papers, scratch cards, glass, self-adhesives, single-sided, double-sided, multi-layer circuit (PCB), liquid green oil, cold light (EL) and flexible circuit boards.
Specification
Model: TX-2030S
Printing Thickness: ≤80mm
Max printing area: 200*300mm
Air pressure: 4.0～6.0 kfg/c㎡
Size of printing table: 200*400mm
Rated voltage/Power: 220V/50HZ/400W
Max size of screen frame: 400*600mm
Printing speed: 1000pcs/h
Packing size: 1 000*680*680mm
Weight: 100KG
Features
1. Using a microcontroller in conjunction with a touch sensitive panel to compile action programs; The control panel is clear and easy to operate, displaying in both Chinese and English.
2. A four digit counter that counts the number of prints; Clearly display the current production volume.
3. Fully cast aluminum body with a surface coated with metal paint;
4. Double column lifting structure, stable and high-precision;
5. Pneumatic screen washing device; Simple and convenient, no need to manually lift the print head, one click screen cleaning.
The up and down/left and right drive modes of the grid frame/print head are both cylinder driven.
7. Adjustable left and right travel, photoelectric switch limit;
8. The angle of the scraper/ink return blade can be adjusted freely;
9. Scraper constant pressure device to ensure stable pressure during printing;
10. Fine adjust the rotation angle of the workbench to the front, back, left, and right;
11. The mesh frame can be adjusted back and forth, left and right, horizontal, and high and low;
12. Suction stainless steel countertop, capable of adsorbing various thin film products;
13. Equipped with Taiwan CEC hydraulic buffers on the top, bottom, left, and right sides, effectively eliminating printing vibrations;
14. The whole machine runs fast, smoothly, and with low noise;
15. Action mode selection: fully automatic | semi-automatic | manual;
16. Operation mode: panel | foot switch; Two ways of operation
Printing Samples
Plastic Labels
Ceramic substrate
Metal nameplate
