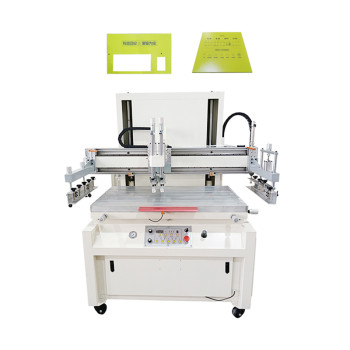

Semi-automatic Flat Screen Printing Machine TX-60100ST for Sheet Metal
group nameSemi-Automatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-60100ST
payment methodT/T
-
update timeSun, 07 Dec 2025 09:10:17 GMT
Paramtents
Printing color 1 color
Operating mode semi-automatic
Printing speed 800pcs/h
Printing size 600*1000mm
Table Size 700*1100mm
Max Frame Size 1000*1400mm
Printing Thickness ≤50mm
Dimension 2020*1210*1720mm
Weight 950KG
Power 380V/50HZ /4.5KW
Packging & Delivery
Weight950kg / set
Min Order1 set
Briefing
Be applied to the flat printing for glass, nameplate, stickers, credit card, Ceramic colored paper, wooden toy puzzles，PCB,SMT tin ointment, and membrane switches in electronic industry .It is also applicable to the flat printing such as golden and silver cardboard ,metal sheet, and other products with the material of PVC, which have high requirement in overprinting.
Detailed
Introduction Semi-automatic Flat Screen Printing Machine for metal sheet
Application:
Be applied to the flat printing for matal sheet, nameplate, stickers, Ceramic colored paper, wooden toy puzzles，PCB,SMT tin ointment, and membrane switches in electronic industry .It is also applicable to the flat printing such as golden and silver cardboard ,metal sheet, and other products with the material of PVC, which have high requirement in
overprinting.
Main performance
1.Vertical structure with the motor driven printing plate goes up and down vertically, and the motor driven print head moves left/right.
2. Single chip controlled circuit, printing and plate goes up and down using independent driving source.
3. Pneumatic controller controls the printing knife moves up and down, photocell eye controls the stroke, which is independent to tune.
4. Set manual/semi-automatic /automatic three modes , the break time of printing is digital controlled.
5. Independent designed head rising and down setting, makes it convenient to clean the scraping blade/reclaiming blade、screen plate during loading and unloading.
6. Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.
Specification
Model | TX-60100ST | |||||||
Table Size | 700x1100mm | |||||||
Substrate Thickness | 0-25 mm | |||||||
Max Printing Area | 600×1000mm | |||||||
Printing speed | 800 pcs/h | |||||||
Maximum screen frame size | 1000*1400mm | |||||||
Stacking Height | 50mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 380V/50HZ / 4.5KW | |||||||
Printing pressure | 4.0~6.0 kfg/c㎡ | |||||||
Machine Dimension | 2020*1210*1720mm | |||||||
Machine Weight | 950KG | |||||||

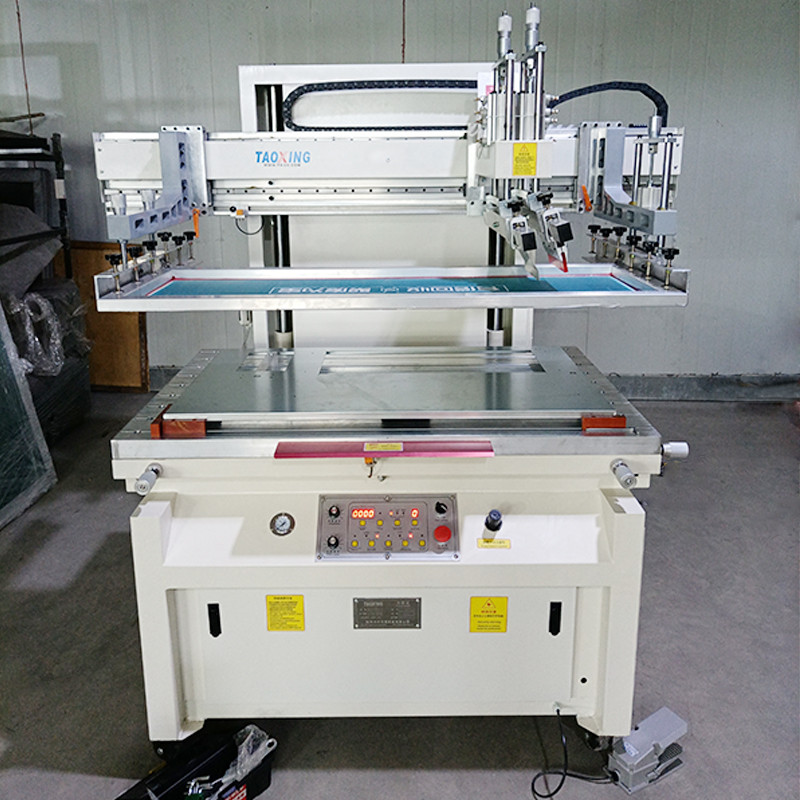

Machine image
Printing sample
