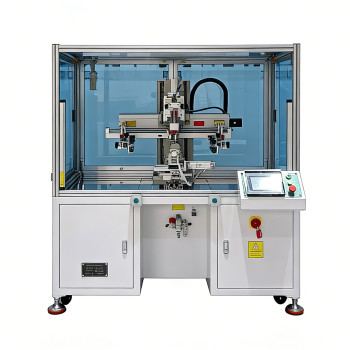

TX-500SZ Three-Axis Semi-Automatic Servo Piston Printing Machine
group nameSemi-Automatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-500SZ
payment methodT/T
-
update timeSat, 21 Mar 2026 17:10:10 GMT
Paramtents
model TX-500SZ
Printing speed 400-800pcs/h
power supply 1AC/220V/50HZ
Printed layer thickness 3-13 micrometers
Printing diameter φ71mm
Printing area 100*450mm
Maximum screen size 300×650mm
Printing screen pressure 0.3-0.5MPa
Packging & Delivery
Weight485kg / set
Min Order1 set
Briefing
Transform your printing process with the TX-4060ST Semi-Automatic Flat Screen Printing Machine for paper and glass. Explore our OEM and wholesale services now!A dedicated printing machine for pistons, suitable for printing and coating on the surface of pistons with cylinder diameters of 60-100mm and piston heights ≤150mm.
The product diameter is set, the stroke is automatically switched, and printing can be started by simply changing the fixture. The mechanical movement accuracy is ±0.1mm.
Simple and convenient to operate:
1、1. Time to change the screen plate 10 minutes; 2. Time to change the fixture 5 minutes; 3. Time to change the shape 20 minutes.
The product diameter is set, the stroke is automatically switched, and printing can be started by simply changing the fixture. The mechanical movement accuracy is ±0.1mm.
Simple and convenient to operate:
1、1. Time to change the screen plate 10 minutes; 2. Time to change the fixture 5 minutes; 3. Time to change the shape 20 minutes.
Detailed
Performance Features
1. Drive and control : Siemens PLC + touch screen control, three-axis servo bus drive, supports manual/semi-automatic switching, printing stroke, speed, and screen distance can be stored and recalled with one click, and the operation threshold is low.
2. Printing and positioning mechanism : Automatic squeegee/ink return/screen lifting, automatic squeegee balancing; fine adjustment of the worktable in front and behind, left and right, and up and down, adaptable to the elliptical skirt of the piston and irregular curved surfaces; optional vacuum platform, thin-walled piston without indentation.
