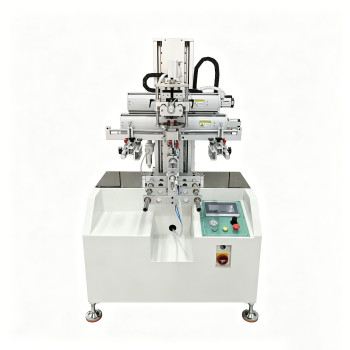

Automatic Four-Axis Servo Driven Screen Printing Machine CP-5004Z for Cosmetic and Irregularly Shaped Bottles
group nameCurved Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelCP-5004Z
payment methodT/T
-
update timeThu, 16 Jul 2026 08:03:14 GMT
Paramtents
Max printing area 500*200mm
Maximum size of printed products Φ150* L200mm
Printing Speed 800pcs/hour
Max screen frame 300*600mm
Max Printing length 200mm
Machine Weight About 260KG
Power Supply AC220V/2.4KW
Machine Dimension L1000* W800 * H1630mm
Air Pressure 0.5-0.8 MPa
Application Areas Cups, bottles, cans, metal pipes,
Printable Shapes Circle, Ellipse Flat, Square
Product Positioning Fixture positioning + Cursor positioning
Packging & Delivery
Size1000cm x800cm x1630cm
Weight260kg / set
Min Order1 set
Briefing
This four-axis servo irregular shape screen printing machine is suitable for printing on various round, conical, oval, flat, and square plastic bottles, glass bottles, metal cans and other packaging containers, and is widely used in the food, pharmaceutical, and cosmetic industries.
Detailed
Introduction of CP-5004Z Four-Axis Servo Screen Printing Machine for Irregularly Shaped Bottles
This four-axis servo irregular shape screen printing machine is suitable for printing on various round, conical, oval, flat, and square plastic bottles, glass bottles, metal cans and other packaging containers, and is widely used in the food, pharmaceutical, and cosmetic industries.
Main parameters
Model : CP-5004Z
Max Printing area: 200*500mm
Printable Products: Plastic bottles,Glass bottles,Wine bottles,
Cosmetic bottles, etc.
Printable Shapes: Circle, Ellipse,Flat, Square
Max printing speed: 800-1000（PCS/H）
Max screen frame: 300*600mm
Maximum size of printed products: Φ150*200mm
Air Source Pressure: 0.5-0.8 MPa
Rated voltage/Power: 220V/ 50HZ/ 2.4KW
Product Positioning: Fixture positioning +cursor positioning
Printing length: ≤200mm
Dimension Size : L1000*W800*H1630mm
Gross weight : 260KG
Main performance
1. It adopts a servo control system with four-axis linkage.
2. The machine has a compact structure, occupies little space, is easy to operate, and has a high cost performance.
3. Equipped with a PLC controller and touch screen, the human-machine interface makes the entire operation simple and convenient.
4. The automatically balancing scraper ensures even printing pressure.
5. Both the worktable and the screen frame can be finely adjusted forward, backward, left, right, up, and down, resulting in high printing accuracy and convenient and quick adjustment.
6. The scraper section can be lifted independently for easy and convenient replacement and cleaning of the mesh frame.
7. We can design and customize products according to the specific requirements of our customers.
Details Pictutre
Printing samples
