Cheap Construction Material I Beam Steel Industrial Factory Workshop Design Metal Shed
group nameSteel Structure Workshop
-
Min Order50 square meter
brand nameJunnan Steel Wholesale
payment methodL/C, D/A, T/T, Paypal
-
update timeFri, 05 Dec 2025 14:17:52 GMT
Paramtents
Grade Q235 Q345 & Q355B steel
Type Light
Application Steel Workshop
Processing Service Bending, Welding, Decoiling, Cutting, Punching
Window Sliding Window, PVC window or aluminium window
Door sliding door or rolling door
Wall Cladding Steel color sheet, sandwich panel
Roof Cladding Steel color sheet, sandwich panel glass wool and
Packging & Delivery
Min Order50 square meter
Briefing
Prefab steel structure workshop can be constructed without any interior columns that might take up valuable floor space or interfere with interior operations.
Detailed
Prefab steel structure workshop can be constructed without any interior columns that might take up valuable floor space or interfere with interior operations. The simple fact that machines and laborers do not have to maneuver around massive interior columns can save countless hours of work. It also is incredibly important in maximizing space for storage.
Specification
|
Structure
|
Part
|
Specification
|
|
Main Structure
|
Frame Column and Beam
|
Q355B H/I Section & As drawings
|
|
Welding
|
Automatic Submerged Arc Welding
|
|
|
Surface Processing
|
Coating or Galvanized
|
|
High Strength Bolt | Grade 10.9 | |
Secondary Structure | Purlin | C/Z Purlin Size from C120-C320,Z100~Z300 |
Angle Brace | Q235B L-Steel | |
Cross Brace/X Brace | Q235B Round Pipe | |
Tie Bar | Q235B Round Bar | |
Roof System | Roofing Material | Sandwich Panel-Insulated PU/Glasswool/Rock Wool/EPS 50mm-200mm |
Skylight Panel | 1.2mm FRP | |
Gutter | Steel Gutter Galvanized/Coated 2.0mm-3.0mm | |
Rainspout/Down Pipe | PVC Pipe | |
Wall System | Wall Material | Sandwich Panel-Insulated PU/Glasswool/Rock Wool/EPS 50mm-200mm |
Accessories | Sealant, Self-tapping Screw etc | |
Edge Cover | Color Steel | |
Ventilator | Unpowered Axial-Flow Ventilator or Monitor Roof | Customizable |
Door | Electric Rolling Door/Sliding Door/Access Side Door | Customizable |
Window | Aluminum/PVC | Customizable |
Crane | 1-200 T | Customizable |
Packing | Main steel frame without packing load in 40' OT; | |
Roof and wall panel load in 40' HQ! | ||

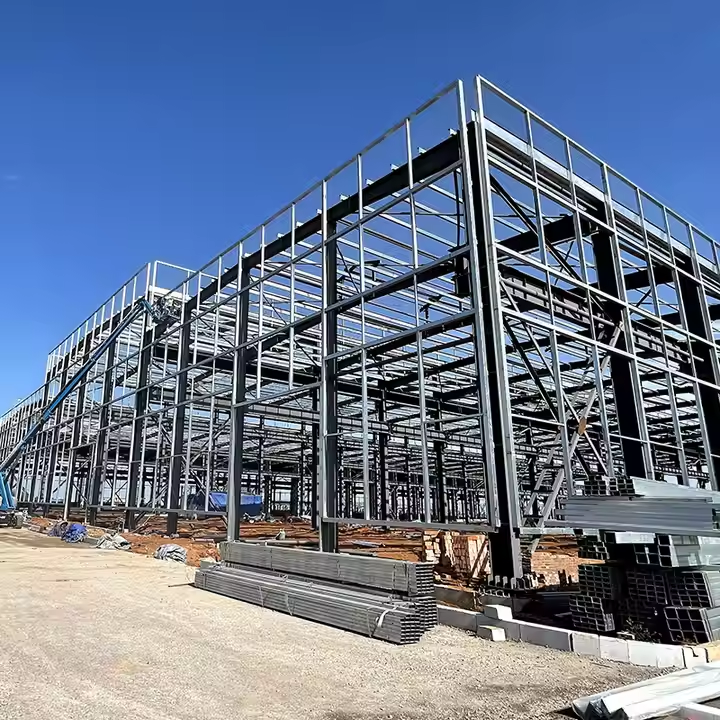

Steel structure workshop is made from steel structure systems, composed by H section steels for both columns and beams, and connected by high strength bolts for main steel structures. And cladding systems like sandwich panels or corrugated steel sheets are connected to the main steel structure by steel purlins. Ventilators are used for fresh air to come and skylight panels and windows used for light to come in.
For steel structure workshops, overhead crane will be adopted for lifting heavy steel materials. Sandwich panel sliding doors or automatic roller doors are the options for steel structure workshop doors.
Features
1.Durable and Versatile Structure: The steel structure building features a modern design style, supported by tie rods and X-bracing for added stability and security, making it suitable for workshop.
2.Comprehensive Warranty and Support: We provide a 1-year warranty, free spare parts, and a range of after-sales services, including onsite installation, training, and inspection, to ensure your satisfaction and peace of mind.
Service we supply
We can help you find the steel building solution to fit your needs, whether you are looking to build for a new manufacturing company, an industrial warehouse, or looking to expand. All of our steel buildings are made to stand the test of time using the highest, most durable grade steel. The options are endless when customizing your steel building from ceiling lights, skylights to the windows and doors.
No matter the size, or customization need for the steel building, Junnan will be able to manufacture it to fit your needs.
For more information, please send inquiry to me. We can provide precise quotation for your project.
How to get quotes
· If you have drawings, welcome to share drawings with us, quoation will be done based your drawings. Our excellent design team will
design the steel structure workshop warehouse for you.
· If you give the following information, we will give you an satisfactory drawing.
① Location (where will be built? ) which country? which city?
② Size: Length*width* Eave height _____mm*_____mm*_____mm
③ wind load (max. Wind speed) _____kn/㎡, _____km/h, _____m/s
④ snow load (max. Snow height) _____kn/㎡, _____mm, temperature range?
⑤ anti-earthquake level ？
⑥ Roof and Wall: determine the panel material, such as color steel panel, and metal sandwich panel.
⑦ Windows and Doors: what material, quantity, and type?
Project show
1. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything
we can to reduce your cost and guarantee you get the best product that you paid for.
2. Can you send engineers or whole team to install my project?
We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.
3. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
4. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5
star hotel.
5. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after
receiving deposit.
6. How can you get a quotation for your projects?
You can contact us by email, phone, Alibaba TM, WhatsApp, Skype, Viber and so on 24*7 and you will get reply within 8 hours.e compared with other companies? You need a product
