HZSS Hybrid Power Heat Exchanger Multi-Fuel OEM Applications

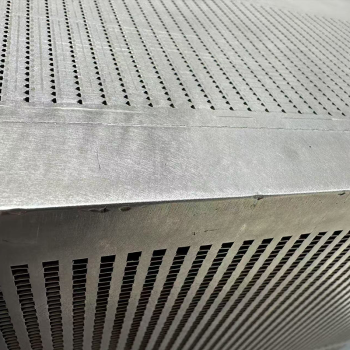

Diffusion bonded hybrid heat exchanger

H²Xs to a micro channel, stagger my article and plate fins, and use precision diffusion bonding technology to become one. Hybrid heat exchangers combine the advantages of micro-channel and plate-fin heat exchangers. Micro-channel plates on the cold side have high temperature and pressure resistance, and plate-fin mechanisms on the hot side have the advantages of large flux and low pressure drop.

Process Technology

Shape and Structure

H²X	Integrated microchannel heat exchanger

Features

1.Temperature and pressure resistance；
2.large flux；
3.low pressure drop.

Application

Used in nuclear power with flue gas-sCO₂, molten salt-sCO₂, molten salt-helium as heat exchange medium, photothermal, marine supercritical CO₂ power generation system heaters, and to improve the energy efficiency of medium- or heavy-duty truck engines The evaporator of the system.
