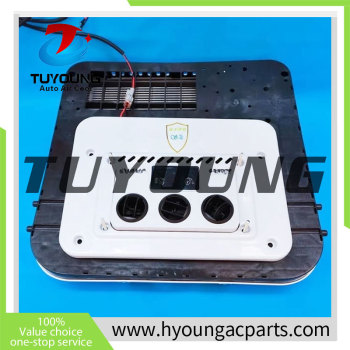

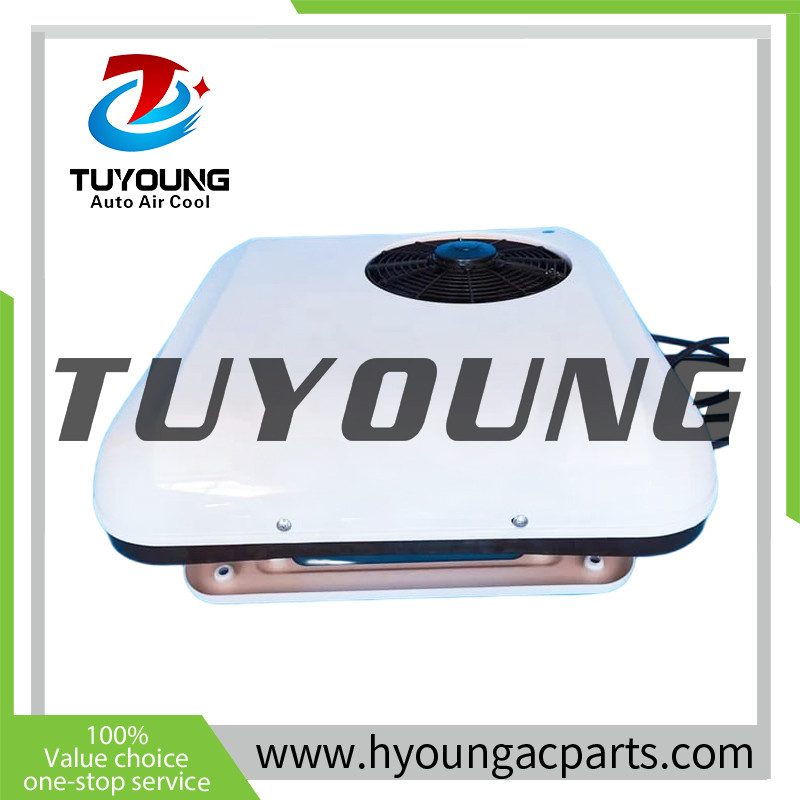

automotive air conditioning parts, integrated Roof air conditioner, fits bus / truck / Engineering Vehicle/and other large vehicles

  • group nameRoof air conditioner

  • Min Order1 piece

  • brand nameTUYoung

  • modelHY-RAC04 HY-RAC04a HY-RAC04b

  • payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash

  • update timeThu, 28 May 2026 09:39:12 GMT

Paramtents

  • Brand name TUYOUNG

  • Condition new

  • item integrated Roof air conditioner

  • fits bus / truck / Engineering Vehicle/and other large

  • type 1 HY-RAC04a 24v

  • type 2 HY-RAC04b 12V

  • carton size 735*753*280mm

Packging & Delivery

  • Min Order1 piece

Briefing

TUYOUNG sale automotive air conditioning parts, integrated Roof air conditioner, fits bus / truck / Engineering Vehicle/and other large vehicles

Detailed

TUYOUNG sale automotive air conditioning parts, integrated Roof air conditioner, fits bus / truck / Engineering Vehicle/and other large vehicles



TUYOUNG ID:HY-RAC04

type 1: HY-RAC04a 24v

type 2: HY-RAC04b 12V


Details:

item: integrated Roof air conditioner

fits bus / truck / Engineering Vehicle/and other large vehicles

carton size: 735*753*280mm


Product Parameters:
Indoor Unit Airflow: 400m³/h
Air Outlets: 4
Total Weight: 19.8kg
Electric Fan Power: 100W
Minimum Skylight Size: 380*180mm
Overall Dimensions: 670*668*148mm

12V Product Parameters:
Power: 300-700W
Rated Voltage: 12V
Cooling Capacity: 1800W
Battery Requirements: 100Ah or higher
Rated Current: 50A
Refrigerant: R-134a
Maximum Current: 60A
Outdoor Unit Airflow: 2000m³/h

24V Product Parameters:
Power: 400-1200W
Rated Voltage: 24V
Cooling Capacity: 2600W
Battery Requirements: 100Ah or higher
Rated Current: 35A
Refrigerant: R-134a
Maximum Current: 50A
Outdoor Unit Air Circulation Volume: 2000m³/h

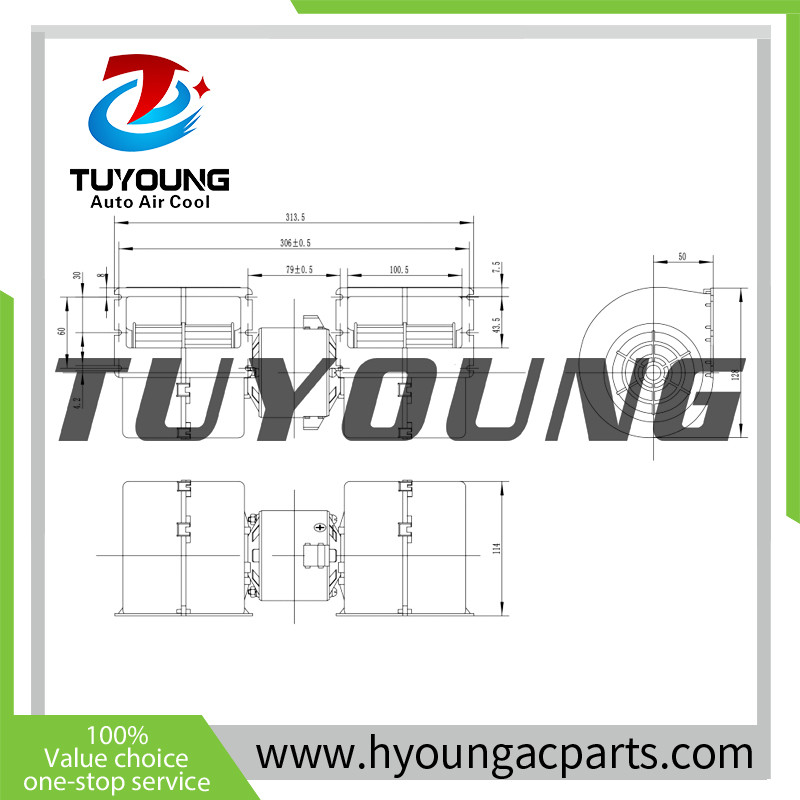

Air conditioner fan motor drawings



Detailed parameters of air conditioner fan motor:
Test Voltage: 27V
Operating Voltage: 24-27V
Operating Current: ≤9.5 A
Maximum Speed: 4600±200rpm
Maximum Speed ​​Noise: 75dBA
Operating Ambient Temperature: -40°C~70°C
Protection Class: IP32
Insulation Resistance: ≥20mA
Insulation Withstand Voltage: 660V/1S without breakdown or flashover
Leakage Current: ≤5mA
Bearings: Ball bearings at both ends
Weight: 1.5 Kg
Packaging:  566*336*261mm

Airflow Test Data
  Static Pressure (Pa)
    Air volume (m³/h)
Current (A)
07899.25
507618.9
1007338.6
1507008.4
2006688.1
      250
      637
 7.7
3006047.4
4005246.7
