group nameFiber Optical Accessories
Min Order100 piece
brand nameRUX
modelMPO Adapter
payment methodL/C, Western Union, MoneyGram, T/T, Paypal
update timeWed, 15 May 2024 18:42:52 GMT
Color Customer Requirement
Fiber Count 8/12/16/ 24
Operating Temperature 40℃~75℃
Durability >1000 Times
Certification RoHS, ISO9001
Application Data center
Min Order100 piece

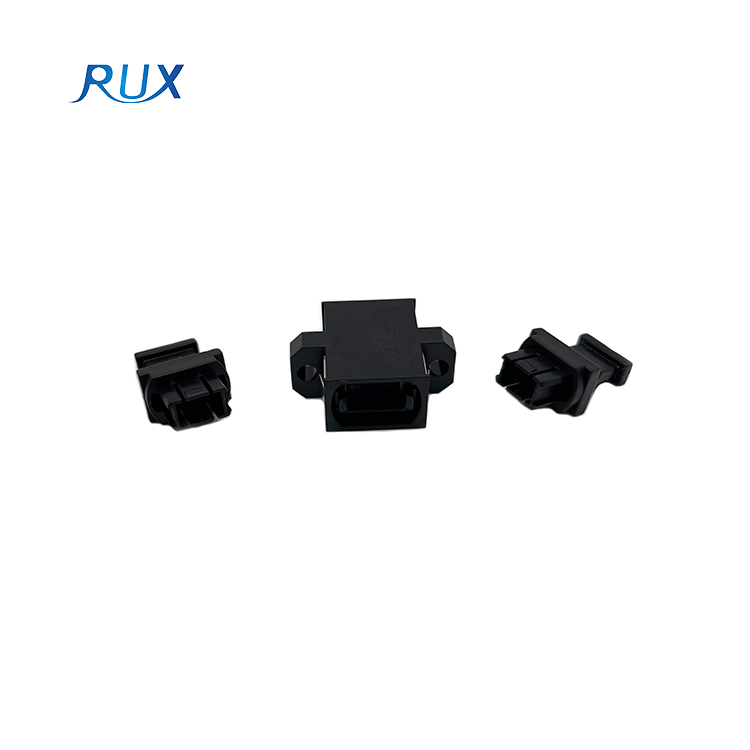

MPO Adapter is a small device used to connect fiber-optic cables with MPO connector, MTP is a high performance MPO connector engineered for better mechanical and optical performance. MPO/MTP adapter provides alignment for a male and female MPO/MTP connector. The housing is available with MTP or SC footprint aligned or opposed alignment keys, different colors and with options for flange or flangeless body. The adapter body material is polyetherimide with a stainless steel spring clip.
ITEM
|
Technical Parameters
|
Test
Wavelength | 850nm/1300nm/1310nm/1550nm |
Connector
Type | MTP/MPO |
Fiber
Count | 8/12/16/
24 |
Flange
Type | with/without
Flange |
Insertion
Loss | Typically
≤0.2dB, Max ≤0.3dB |
Return
Loss | ≥50dB
for UPC. ≥55dB for APC |
Fiber
Type | SM
MM (OM3, OM4) |
Housing
Color | Beige/
Aqua/ Green /Yellow/ Black/ Red |
Surface
Polishing | PC/UPC/APC |
Durability | >1000
Times |
