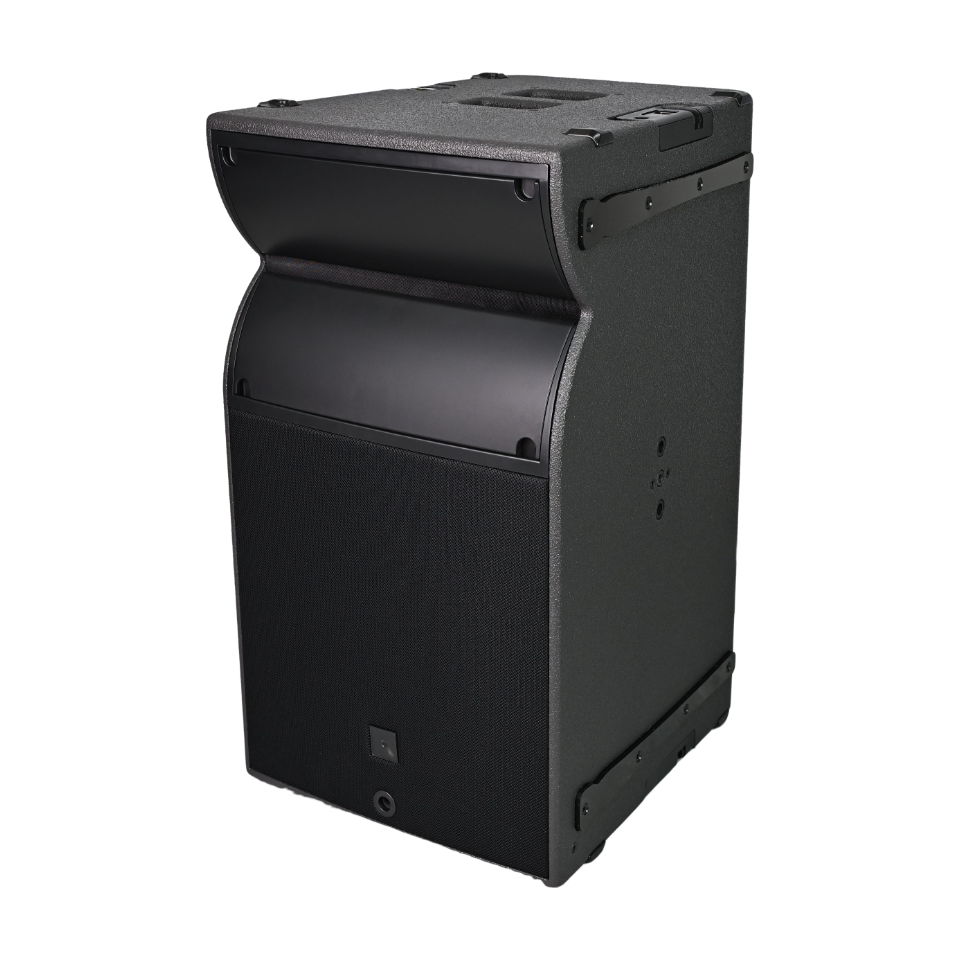

KA15 Focus passive 2-way 15" line array speaker
group nameLINE ARRAY SPEAKER
-
Min Order1 piece
brand nameSinbosen| Audio sound system manufacturer
modelKA15 Focus
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeFri, 05 Dec 2025 15:12:38 GMT
Paramtents
Maximum SPL 144 dB
Nominal impedance 8 Ω
Type line array speaker
Packging & Delivery
Min Order1 piece
Briefing
KA15Wide and KA15Focus can be hung together or stacked together to form a vertical line array.
Detailed
| KA15 wide Specification | |
|---|---|
| Usable bandwidth (-10 dB) | 42 Hz – 20 kHz |
| Maximum SPL | 144 dB |
| Nominal directivity (-6 dB) | Enclosure: 10°
L-Fins : 110° / 70° symmetric ; 90° asymmetric |
| Transducers | LF: 1 × 15" cone driver
HF: 1 × 3" diaphragm neodymium compression driver |
| Acoustical load | LF: bass-reflex, L-Vents
HF: DOSC waveguide; Panflex |
| Nominal impedance | 8 Ω |
| Connectors | IN :1 × 4-point speakON LINK :1 × 4-point speakON |
| Rigging and handling | Flush-fitting two-point rigging system |
| 1 handle | |
| 8 corner stops | |
| 2 ground runners | |
| Cabinet | FIrst grade Russian birch plywood |
| Front | Coated steel grill Acoustically neutral 3D fabric |
| Rigging components | High grade steel with anti-corrosion coating |
| Weight | 32 kg / 71 lb |
FEATURE
●Flexible layout, strong ease of use.
●Vertical coverage angle of 30°, which brings wide coverage to a compact line array without compromising vision.
●The user can adjust the directivity to cover a specific geometry of the audience area and ensure excellent frequency response stability.
●The KA15 Wide and KA15 Focus can be hung together or stacked together to form a vertical line array.
●The KA15 Wide provides wide horizontal coverage when mounted radially, which is ideal for infill and side-fill use on large stages.
●A single KA15 Wide can also be used as a point source pole mount with adjustable directivity, or for applications such as delayed fill.
●The KA15 Wide delivers large concert-level low frequency response.
●Vertical coverage angle of 30°, which brings wide coverage to a compact line array without compromising vision.
●The user can adjust the directivity to cover a specific geometry of the audience area and ensure excellent frequency response stability.
●The KA15 Wide and KA15 Focus can be hung together or stacked together to form a vertical line array.
●The KA15 Wide provides wide horizontal coverage when mounted radially, which is ideal for infill and side-fill use on large stages.
●A single KA15 Wide can also be used as a point source pole mount with adjustable directivity, or for applications such as delayed fill.
●The KA15 Wide delivers large concert-level low frequency response.
DETAIL
HF
LF(1)
LF(2)
