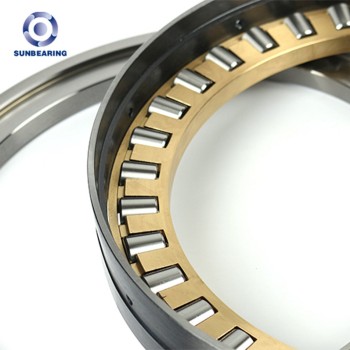

SUNBEARING 829950 Tapered Thrust Roller Bearing Brass 250*380*100mm Stainless Steel GCR15

  • group nameThrust Roller Bearing

  • Min Order1 piece

  • brand nameSUNBEARING Rolling Bearing Manufacturer

  • model829950

  • payment methodL/C, Western Union, T/T, Paypal

  • update timeTue, 29 Mar 2022 15:22:01 GMT

Packging & Delivery

  • Weight42.30kg / piece

  • Min Order1 piece

Briefing

According your demands, we can customized the tapered thrust roller bearing if you want.

Detailed

   Product Description
829950 tapered thrust roller bearing

Thrust roller bearing 829950

Specification

Design Units

Metric

Structure

Roller Bearing

Weights

42.3kgs

Cage Material

Brass

Material

GCR 15, Stainless steel etc.

Roller Type

Tapered

Number of Row

Single

Dimensions

d-Bore Diameter

250mm

D-Outer Diameter

380mm

d1

265mm

D1

275mm

H-Total Width

100mm

r-Fillet Radius

0.6mm

R

2.0mm

da

264mm

Da

285mm

Basic Load Ratings

Cr Dynamic Load Rating

850kN

C0r Static Load Rating

5,00kN



  • 829950 tapered thrust roller bearing is equal to SKF350980C&FAG528974
  • This bearing with planar shaft washers
  • Be able to bear slightly eccentric shaft relative to bearing box hole
  • There is a spacer sleeve between the two housing washer
  • It can withstand high axial load and can position the axial radial position to some extent

Tapered Thrust Roller Bearing Application Field

  • 829950 Thrust roller bearing is mainly used in steel rolling mills of steel manufacturing, are usually together used with multi-row cylindrical roller bearings. The size of the spacing sleeve makes the roller bearing box cover screw tight, and the bearing does not need a special spring to adjust.
  • The bidirectional thrust tapered roller bearings are usually used on the roll neck and roll bearing box to fit installation. Most of the shaft bearing seats with one or two positioning slots that you might use embedded locating slot key or similar method to prevent rotation of the housing washes.




Nearest port for product export
Dalian
Delivery clauses under the trade mode
FOB, CFR, CIF, DDP
Acceptable payment methods
T/T, L/C, PayPal, Westem Union
