1 - 2,000 piece
group nameTapered Roller Bearing
Min Order1 piece
brand nameSUNBEARING Rolling Bearing Manufacturer
model30302
payment methodL/C, T/T, Paypal, Alibaba Trade Assurance
update timeTue, 05 Apr 2022 17:14:55 GMT
Color Silver
Service OEM Service
Sample Available
MOQ 1
Size5cm x 2cm x 2cm
Weight0.10kg / piece
Min Order1 piece
Product Description

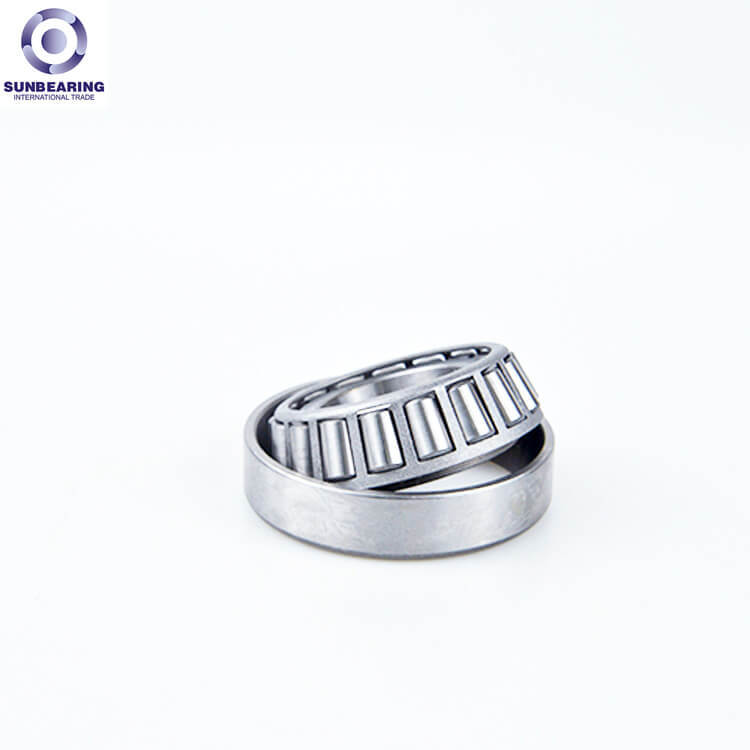

Tapered Roller Bearing 30302 | |
---|---|
Specification | |
Design Units | Metric |
Structure | Roller Bearing |
Weights | 0.1kgs |
Cage Material | Steel cage |
Material | Chrome Steel GCR15 |
Ball Type | Carbon chromium steel |
Seals Type | Metal Seals |
Certificate | ISO9001:2008 |
Advantage | Resistance to food & liquid contaminants adapt to frequent washdowns |
Number of Rows | Single |
Dimensions | |
d-Bore Diameter | 15mm |
D-Outer Diameter | 42mm |
Precision Rating | P5 P6 P4 P2 P0 |
Clearance | C2 C3 C4 C5 C0 |
H-Total Width | 14.25mm |
Basic Load Ratings | |
Cr Dynamic Load Rating | 22900N |
C0r Static Load Rating | 21600N |
Tapered roller bearings mainly bear radial and axial combined loads. The bearing capacity of the bearing depends on the raceway angle of the outer ring.
The greater the carrying capacity. This type of bearing is a split type bearing, which is divided into single row, double row, and four-row tapered roller bearings according to the number of rows of rolling elements in the bearing. The clearance of the single-row tapered roller bearing needs to be adjusted by the user during installation; the double-row and four-row tapered roller bearing clearance have been given according to the user's requirements at the time of shipment from the factory, and no user adjustment is required.
Tapered roller bearings are widely used in automobiles, rolling mills, mining, metallurgy, plastic machinery, and other industries.
Taper Roller Bearing Features:
Waterproof system: The waterproof sealing system guarantees the production of the bearings from the external environment.
Corrosion resistance: Resistance to food & liquid contaminants adapt to frequent washdowns and low-weight elements.
Vacuum sleeves: To be assembled with Gcr15SiMn steel insert bearings to meet your particular budget and performance needs.
