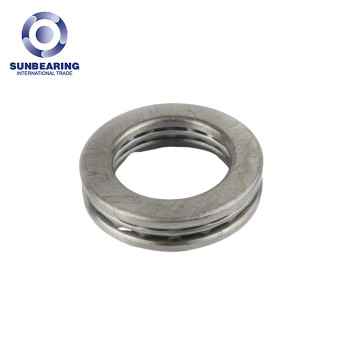

SUNBEARING 51204 Thrust Ball Bearing Silver 20*40*14mm Chrome Steel GCR15

FOB Price
  • US $1.14

    1 - 2,000 piece

  • group nameThrust Ball Bearing

  • Min Order1 piece

  • brand nameSUNBEARING Rolling Bearing Manufacturer

  • model51204

  • payment methodL/C, T/T, Paypal, Alibaba Trade Assurance

  • update timeMon, 04 Apr 2022 16:04:08 GMT

Paramtents

  • Color Silver

  • Service OEM Service

  • Sample Free Sample

  • MOQ 1

Packging & Delivery

  • Size5cm x 3cm x 2cm

  • Weight0.07kg / piece

  • Min Order1 piece

Briefing

The ball and cage assembly can be mounted separately.

Detailed

Product Description

51204 thrust ball bearing

Thrust Ball Bearing 51204

Specification

Design Units

Metric

Structure

Ball Bearing

Weights

0.075kgs

Cage Material

Steel cage

Material

Chrome Steel GCR15

Ball Type

Carbon chromium steel

Seals Type

Open

Certificate

ISO9001:2008

Advantage

The ball and cage assembly can be mounted separately.

Number of Rows

Single

Dimensions

d-Bore Diameter

20mm

D-Outer Diameter

40mm

Precision Rating

P5 P6 P4 P2 P0

Clearance



                                                                                       C2 C3 C4 C5 C0

H-Total Width

14mm

Basic Load Ratings

Cr Dynamic Load Rating

22500N

C0r Static Load Rating

40500N



Single Direction Thrust Ball Bearings



Single direction thrust ball bearings have two washers, with grooved raceways. The curvature of the raceways is slightly larger than that of the ball. Out of two washers, one is a shaft washer & the other one is a housing washer. The bore of the shaft washer is of the shaft bore of the housing washer is slightly larger than that of the shaft washer, to facilitate free rotation. These types of thrust bearings are mainly used where axial load conditions are too large to be accepted by radial bearings. They can accept purely thrust load in a single direction & they are not suitable for speed applications.

The thrust ball bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately.
