CST330-Ⅰ/1580 injection molding machine
group nameProduction injection molding machine
-
Min Order1 piece
brand nameCOSTAR
modelCST330-Ⅰ/1580
payment methodT/T, L/C, D/P D/A
-
update timeMon, 02 Nov 2020 10:09:43 GMT
Paramtents
Condition New
Type Preform Injection
Automatic Yes
Style Horizontal
Warranty 1 year
color any color client require

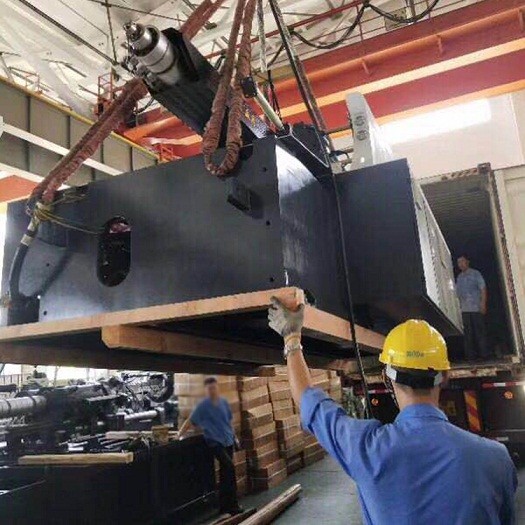

Packging & Delivery
Min Order1 piece
Briefing
Detailed
CST330-Ⅰ/1580 | ||||
A | B | c | ||
Injection Unit | ||||
Screw diameter | mm | 60 | 65 | 70 |
Screw L/D ratio | L/D | 22.7 | 21 | 19.5 |
Injection capacity in theory | cm3 | 905 | 1062 | 1232 |
Injection weight(ps) | g | 841 | 1000 | 1145 |
oz | 29.6 | 34.8 | 40.4 | |
Injection pressure | MPa | 219 | 186 | 161 |
Injection rate | g/s | 243 | 285 | 331 |
Plasticizing capacity | g/s | 40 | 48 | 57 |
Screw speed | rpm | 160 | ||
Clamping Unit | ||||
Clamping force | kN | 3300 | ||
Moving mould-plate stroke | mm | 660 | ||
Max.Mould height | mm | 750 | ||
Min.Mould height | mm | 250 | ||
Space between tie-bars | mm | 720x670 | ||
Hydraulic ejector force | kN | 125 | ||
Hydraulic ejector stroke | mm | 180 | ||
Ejector number | n | 13 | ||
Other | ||||
Pump pressure | MPa | 16 | ||
Motor/Driving power | kW | 30/37 | ||
Heating capacity | kW | 20.35 | ||
Machine dimension | m | 7.02 x 1.77 x 2.18 | ||
Machine weight | t | 11 | ||
Oil tank capacity | L | 680 | ||
