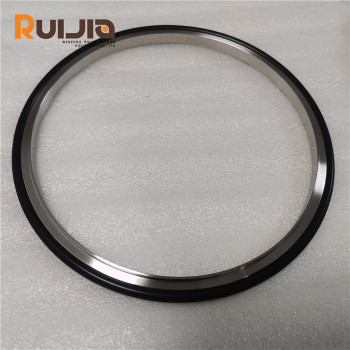

ISO Vacuum Centering Ring With NBR O'ring
group nameISO-K Centering Rings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeTue, 04 Mar 2025 14:18:30 GMT
Paramtents
Product Name ISO Vacuum centering ring with NBR O’ Ring
Standard ISO Standard
Seal material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
Vacuum centering rings & O'ring, centering rings size range:ISO63-ISO630,O'ring material:viton, silicone. centering ring & O'ring is used in vacuum application.
Detailed
ISO Vacuum Centering Ring With NBR O'ring feature
advantage
●ISO Vacuum Centering Ring with NBR O’ ring is typically used in conjunction with vacuum systems to ensure that components or parts are precisely located or centered within a vacuum chamber.
● Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel, AluminiumEN1.4301, EN1.4404
●Designed to maintain airtight seals when placed in a vacuum environment, preventing leaks that could compromise the integrity of the vacuum chamber.
ISO Vacuum Centering Ring With NBR O'ring specifications
| Product Name | ISO Vacuum centering ring with NBR O’ Ring |
| Brand | RUIJIA |
| Size | ISO63,ISO80,ISO100,ISO160,ISO200,ISO250,ISO320,ISO400,ISO500,ISO630 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | ISO Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| ISO Vacuum Centering Ring types | ISO centering ring,ISO centering ring with viton O’ring, ISO centering ring with NBR O’ring,ISO outer ring centering ring & viton O’ring |
ISO Vacuum Centering Ring With NBR O'ring parameter
ISO Vacuum Centering Ring with NBR O’Ring Unit: mm
| Model No. | Material C/R | Material O'Ring | A | B | C | |||||||
| ISO63CRNSE | 304 S.S. | NBR | 68 | 70 | 8 | |||||||
| ISO80CRNSE | 304 S.S. | NBR | 81 | 82.6 | 8 | |||||||
| ISO100CRNSE | 304 S.S. | NBR | 100 | 102 | 8 | |||||||
| ISO160CRNSE | 304 S.S. | NBR | 148 | 153 | 8 | |||||||
| ISO200CRNSE | 304 S.S. | NBR | 210 | 213 | 8 | |||||||
| ISO250CRNSE | 304 S.S. | NBR | 257.5 | 261 | 8 | |||||||
| ISO320CRNSE | 304 S.S. | NBR | 312 | 318 | 12 | |||||||
| ISO400CRNSE | 304 S.S. | NBR | 394 | 400 | 12 | |||||||
| ISO500CRNSE | 304 S.S. | NBR | 494 | 501 | 12 | |||||||
| ISO630CRNSE | 304 S.S. | NBR | 644.5 | 650.5 | 12 | |||||||
| ISO63CRNAE | AL | NBR | 67 | 69.6 | 8 | |||||||
| ISO80CRNAE | AL | NBR | 80 | 82.6 | 8 | |||||||
| ISO100CRNAE | AL | NBR | 99 | 101.6 | 8 | |||||||
| ISO160CRNAE | AL | NBR | 150 | 152.6 | 8 | |||||||
| ISO200CRNAE | AL | NBR | 210 | 212.6 | 8 | |||||||
| ISO250CRNAE | AL | NBR | 257.5 | 260.4 | 8 | |||||||
| ISO320CRNAE | AL | NBR | 312 | 317.3 | 12 | |||||||
| ISO400CRNAE | AL | NBR | 394 | 399.2 | 12 | |||||||
| ISO500CRNAE | AL | NBR | 494 | 500.2 | 12 | |||||||
| ISO630CRNAE | AL | NBR | 644.5 | 650.5 | 12 | |||||||
| Model No. | Material C/R | Material O'Ring | A | B | C | D | Material O/R | O'ring Size |
| ISO63OCRNSA | 304 S.S | NBR | 67 | 69.6 | 8 | 3.9 | AL | AS-337 |
| ISO80OCRNSA | 304 S.S | NBR | 80 | 82.6 | 8 | 3.9 | AL | AS-341 |
| ISO100OCRNSA | 304 S.S | NBR | 99 | 101.6 | 8 | 3.9 | AL | AS-347 |
| ISO160OCRNSA | 304 S.S | NBR | 150 | 152.6 | 8 | 3.9 | AL | AS-362 |
| ISO200OCRNSA | 304 S.S | NBR | 210 | 212.6 | 8 | 3.9 | AL | AS-371 |
| ISO250OCRNSA | 304 S.S | NBR | 257.5 | 260.4 | 8 | 3.9 | AL | AS-378 |
| ISO320OCRNSA | 304 S.S | NBR | 312 | 317.3 | 12 | 5.6 | AL | AS-454 |
| ISO400OCRNSA | 304 S.S | NBR | 394 | 399.2 | 12 | 5.6 | AL | AS-461 |
| ISO500OCRNSA | 304 S.S | NBR | 494 | 500.2 | 12 | 5.6 | AL | AS-469 |
| ISO630OCRNSA | 304 S.S | NBR | 644.5 | 650.5 | 12 | 5.6 | Al | AS-475 |
| ISO63OCRNAA | AL | NBR | 67 | 69.6 | 8 | 3.9 | AL | AS-337 |
| ISO80OCRNAA | AL | NBR | 80 | 82.6 | 8 | 3.9 | AL | AS-341 |
| ISO100OCRNAA | AL | NBR | 99 | 101.6 | 8 | 3.9 | AL | AS-347 |
| ISO160OCRNAA | AL | NBR | 150 | 152.6 | 8 | 3.9 | AL | AS-362 |
| ISO200OCRNAA | AL | NBR | 210 | 212.6 | 8 | 3.9 | AL | AS-371 |
| ISO250OCRNAA | AL | NBR | 257.5 | 260.4 | 8 | 3.9 | AL | AS-378 |
| ISO320OCRNAA | AL | NBR | 312 | 317.3 | 12 | 5.6 | AL | AS-454 |
| ISO400OCRNAA | AL | NBR | 394 | 399.2 | 12 | 5.6 | AL | AS-461 |
| ISO500OCRNAA | AL | NBR | 494 | 500.2 | 12 | 5.6 | AL | AS-469 |
| ISO630OCRNAA | AL | NBR | 644.5 | 650.5 | 12 | 5.6 | AL | AS-475 |
