ISO Vacuum Flange 90-Degree Mitered Elbows Fittings
group nameISO-K Vacuum Fittings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeTue, 12 Nov 2024 14:18:18 GMT
Paramtents
Product Name ISO Vacuum flange fittings 45 degree elbow
Size ISO63,ISO80,ISO100
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L
Packging & Delivery
Min Order1 piece
Briefing
Elbow,Mitered,ISO Type,90 degree. application: high vacuum pipeline system.ISO mitered elbows is made of stainless steel and has a bead-blasted finish.
Detailed

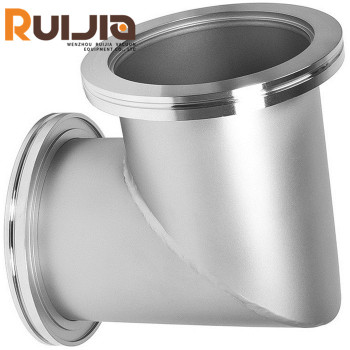

ISO Vacuum Flange 90-Degree Mitered Elbows Fitting feature
advantage
●●Used in plumbing, HVAC systems, and industrial piping applications to change the direction of the flow by 90 degrees.
● Size: Ensure that the elbow's inner diameter matches the tube or pipe it will connect to, and its outer diameter aligns with the flanges or other fittings in your system.
●Thread type: Match the thread type of the elbow to the rest of your system to maintain integrity and prevent leaks.
● Surface finish: Some applications require a high level of cleanliness, so choose fittings with appropriate surface finishes to minimize particle generation.
ISO Vacuum Flange 90-Degree Mitered Elbows specifications
| Product Name | ISO Vacuum flange fittings 90 degree mitered Elbow |
| Brand | RUIJIA |
| Size | ISO63,ISO80,ISO100,ISO160 |
| Material | SS304, SS316L |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | ISO Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| ISO flange fittings types | ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses. |
ISO Vacuum Flange 90-Degree Mitered Elbows parameters
ISO Vacuum flange fittings 90 degree mitered Elbow Unit:mm
| Model No. | Size | A |
| ISOK-90MEL-63 | ISO63 | 82.6 |
| ISOK-90MEL-63-1 | ISO63-H | 87.93 |
| ISOK-90MEL-80 | ISO80 | 88.9 |
| ISOK-90MEL-80-1 | ISO80-H | 108 |
| ISOK-90MEL-100 | ISO100 | 1049 |
| ISOK-90MEL-100-1 | ISO100-H | 108 |
| ISOK-90MEL-160 | ISO160 | 138 |
| ISOK-90MEL-160-1 | ISO160-H | 160.2 |
Special Size available Upon Request.
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
