CF Vacuum Flange Fittings 90°Elbows Rotatable,Stainless Steel,Suitable For Ultra-high Vacuum Applications
group nameCF Vacuum Fittings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeMon, 04 Nov 2024 09:29:24 GMT
Paramtents
Size CF16,CF35,CF63,CF100,CF150,CF200,CF250
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Standard CF Standard
Temperature -200~800℃
Packging & Delivery
Min Order1 piece
Briefing

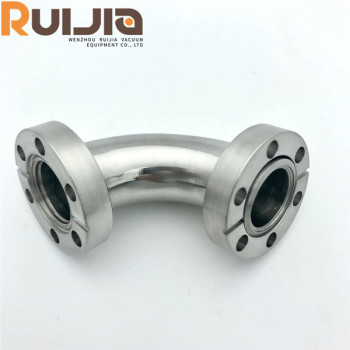

Vacuum fittings,rotatable elbow, 90 degree rotatable elbow is made of 304 and 306 stainless steel, with rotatable CF vacuum flanges at both ends, used to connect two CF flange faces with a right angle change in direction.
Detailed
CF Vacuum Flange Fittings 90°Elbows Rotatable,Stainless Steel,Suitable For Ultra-high Vacuum Applications Feature
●Application: Suitable for ultra-high vacuum applications below 10-13 Torr, as well as maintaining stable performance in the temperature range of -196 ° C to 500 ° C.
●Packaging method: shockproof packaging materials, such as foam or bubble film, are usually used to reduce vibration and impact during transportation
●Testing:Appearance inspection, size inspection, sealing performance testing
CF Vacuum Flange Fittings 90°Elbows Rotatable,Stainless Steel,Suitable For Ultra-high Vacuum Applications Specifications
|
Product Name
|
CF Vacuum Flange Fittings 90°Elbows Rotatable,Stainless Steel,Suitable For Ultra-high Vacuum Applications
|
||
Brand | RUIJIA | ||
Size | CF16,CF35,CF63,CF100,CF150,CF200,CF250 | ||
Material | SS304, SS316L | ||
Seal material | Oxygen free copper, silver plated copper | ||
Standard | CF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
CF flange fittings types
|
CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.
|
||
Product parameters
CF Vacuum Flange Fittings 90°Elbows Rotatable,Stainless Steel,Suitable For Ultra-high Vacuum Applications Unit:mm
| Model No. | Material | A | B | C |
| CR16EL90 | 304S.S | 47.2 | 19.05 | 33.8 |
| CR35EL90 | 304S.S | 79.8 | 38.1 | 69.5 |
| CR63EL90 | 304S.S | 141.3 | 63.5 | 113.6 |
| CR100EL90 | 304S.S | 222.2 | 101.6 | 151.6 |
| CR150EL90 | 304S.S | 241.3 | 152.4 | 202.5 |
| CR200EL90 | 304S.S | 215.9 | 219.08 | 253.2 |
| CR250EL90 | 304S.S | 266.7 | 273.05 | 336.5 |
Special Sizes Available Upon Request.
