group nameConverter
Min Order1 piece
brand nameDtech
modelDT-6529
payment methodWestern Union, T/T, Paypal
update timeSat, 08 Aug 2020 13:56:32 GMT
Certificate CE,ROHS
Resolution 1080p;720p
Color Gray
MOQ 1pc
OEM/ODM Yes
Warranty 24 month
Material Metal shell
Size50cm x 50cm x 50cm
Weight0.50kg / piece
Min Order1 piece
Ⅰ. Product Introduction

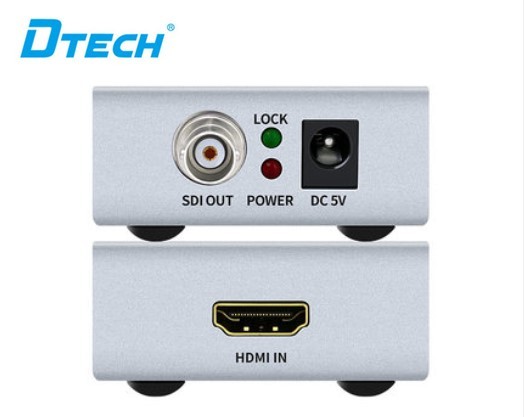

HDMI to SDI converter is a device dedicated to convert the HDMI signal to a single way HD serial digital interface (HD-SDI and 3G- SDI) signal. It integrates SDI receiver with HDMI modulator, can convert HDMI signal to SDI signal easily. Meanwhile, it will convert and separate audio signal of HDMI which will be embedded into SDI signal, to realize the sound and image synchronous transmission.
Ⅱ. Basic parameters
1. The video output signal: HD serial digital interface (HD-SDI and 3G-SDI) signal
2. Video input signals: one way HDMI signal output (1080P@60Hz)
3. The input audio signal: HDMI inline
4. The HDMI signal support 1.3, downwards compatible with 1.2/1.1
5. Support HDMI resolution 720P、1080i、1080P.
6. Automatic identification of resolution
7. Synchronize audio and image output
8. Maximum working current: 500mA
9. Working temperature: (15 to + 55 ℃)
10. Working humidity: 5 to 90% RH (no condensation)
