Galvanized Boat Trailer Torsion Axle With Disc Brake Wholesale Manufacturer

group nameTorsion Trailer Axles
Min Order10 piece
brand nameHaway Trailer Parts Manufacturer
modelcustom
payment methodL/C, D/P, Western Union, T/T, Paypal
update timeSun, 07 Dec 2025 03:27:04 GMT

contact supplier

Paramtents

MOQ 20
Capacity 2000lbs - 7000lbs
Surface Finish hot dip galvanized
Brake disc brake

Packging & Delivery

Min Order10 piece

Briefing

Galvanized Boat Trailer Torsion Axle With Disc Brake is hot dip galvanized finish, various capacity are available.

Detailed

Detailed Information Of Boat Trailer Axle

Boat trailer axles meand the hot dip galvanizing surface finish axle here.

Galvanizing surface finish boat trailer axles are specifically designed for saltwater use, galvanized axles are treated with a layer of zinc to protect against corrosion and rust. Ideal for boat trailers used in saltwater environments where corrosion is a significant concern.

Torsion axle with galvanizing surface finish maintenance-free and provide a smoother ride by using rubber cords inside the axle to absorb shock.

Weight Capacity	Beam Size	Bolt Pattern	Hub Face Distance	Mounting Bracket Distance	V bend	Brake	Surface Finish
2200 lbs	60x60mm	5-4.5''	customized	customized	Option	No Brake	Hot Dip Galvanizing
3500lbs	65x65mm	5-4.5''	customized	customized	Option	No brake or Hydraulic/ Mechanical disc brake for option	Hot Dip Galvanizing
6000lbs	80x80mm	6-5.5''	customized	customized	Option	No brake or Hydraulic/ Mechanical disc brake for option	Hot Dip Galvanizing
7000lbs	90x90mm	8-6.5''	customized	customized	Option	Hydraulic or Mechanical disc brake for option	Hot Dip Galvanizing

Different Types

Boat Trailer Axle Without Brake

This kind of boat trailer is fully hot dip galvanizing surface finish and usually used on light duty boat trailers. Weight capacity is 2200lbs, or 3500 lbs. Bolt pattern are 4 bolts on 4.0'' or 5 bolts on 4.5''.

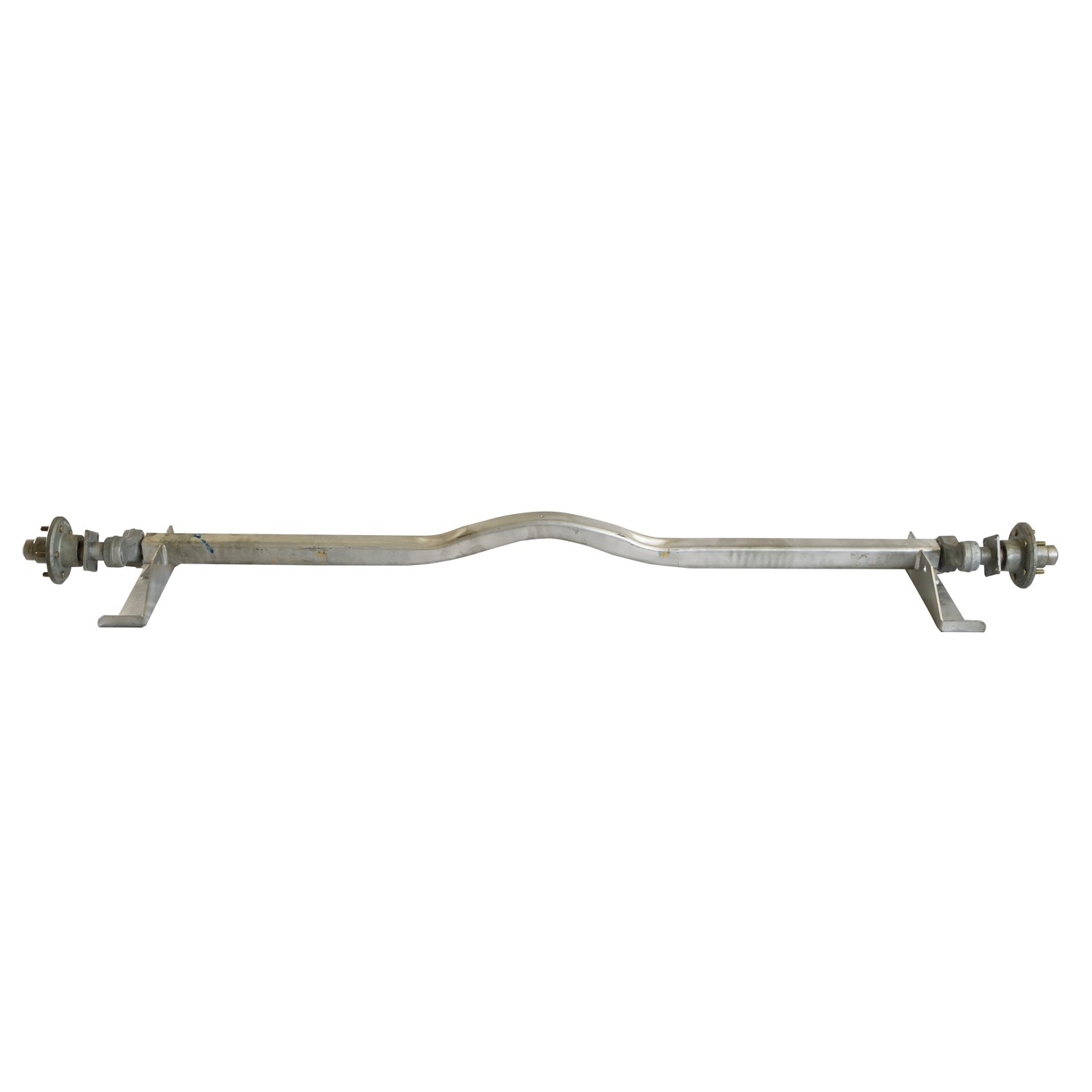

Boat Trailer With V Bend On Beam

A "Boat Trailer with V Bend on Beam" refers to a specific design of boat trailer where the main beam (the central structural support of the trailer) is bent or formed into a "V" shape, typically at the front section of the trailer. This V-shaped bend is incorporated into the design of the trailer's frame or beam to provide better weight distribution, support for the boat, and a more stable towing experience.

This kind of boat trailer can be with or without brake， depending on customers requirement.

Boat Trailer With Hydraulic Disc Brake

A boat trailer with hydraulic disc brakes is a type of trailer designed specifically for towing boats, equipped with hydraulic disc brakes to provide superior stopping power, control, and safety compared to traditional braking systems. This type of braking system is particularly beneficial for boat trailers, as it can handle the added weight of the boat, and offer better performance under various towing conditions.

Boat Trailer With Mechanical Disc Brake

A boat trailer with mechanical disc brakes is a type of trailer equipped with a mechanical disc brake system, which uses mechanical force rather than hydraulic fluid or electrical components to engage the brakes. This type of braking system is typically simpler and more cost-effective than hydraulic or electric brake systems, but it still provides strong stopping power, especially for smaller to medium-sized boats.

Boat Trailer Torsion Axles Features And Advantages

1.Independent Suspension

Torsion axles feature independent suspension, meaning each wheel moves independently of the other. This results in a smoother ride for the boat and less stress on the trailer frame. It’s especially beneficial for towing on rough or uneven roads.

2.Low Maintenance

Torsion axles require minimal maintenance since they don't have many moving parts like leaf spring axles. There are no shackles, bushings, or leaf springs to replace, making it easier to maintain and reducing the risk of failure.

3.Compact Design

The torsion bar is built into the axle itself, making the system more compact and allowing for more ground clearance. This helps in reducing the overall height of the trailer, making it easier to load and unload the boat.

Corrosion Resistance:

Torsion axles surface finished used on boat trailer is usually hot dip galvanizing which is resistant to rust and corrosion It is important for boat trailers that are frequently in contact with water or saltwater.

4. Smooth Towing Experience

Due to the independent suspension system, torsion axles provide a smoother towing experience, reducing the amount of bounce and sway typically associated with leaf spring systems. This helps ensure your boat stays stable and secure during transit.

Advantages of Boat Trailer Torsion Axles:

1. Smoother ride and less bounce during transport, reducing stress on both the boat and the trailer.

2. Corrosion-resistant materials, ideal for marine environments.

3. Compact and clean design, reducing maintenance and repair needs.

4. Independent suspension offers a better towing experience.

5. Customization options for different boat types and weight capacities.

Why Choose Buy Boat Trailer Torsion Axle Axle From The Manufacturer

1.As a professional boat trailer manufacturer we ensure that the axles meet market and industry for safety, performance, and corrosion resistance. A quality axle supplier will offer products built to withstand the tough conditions of boating and road use.

2.A boat trailer axle supplier we offer the ability to customize the axle to customer’s specific needs (e.g., custom load capacities, braking systems, or suspension types). This is especially important for trailers with non-standard boat sizes or special weight requirements.

3.While price shouldn’t be the only factor in your decision, it’s important to compare prices across different suppliers.As the boat trailer factory we offer a very competitive price.
