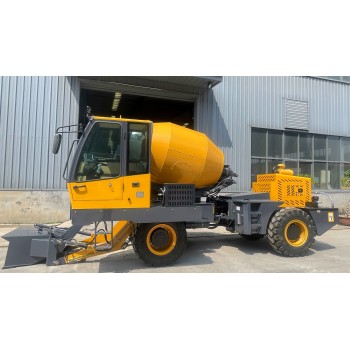

1.6m3 Automatic Self-loading Concrete Mixer Truck

group nameSelf-loading Concrete Mixer
Min Order1 set
brand nameSaintyol DAWIN Machinery
modelHY1.6
payment methodL/C, T/T
update timeSat, 06 Dec 2025 00:00:16 GMT

contact supplier

Paramtents

Output Capability 1.6m³ Per Tank
Certificates CE
Tyre Off Road
Loading Bucket 600L
Engine Cummins or others
Weighing System Electrical Auto
Hydraulic Fittings Rexroth or others
Drum Tank Rotation 270 degree

Packging & Delivery

Min Order1 set

Briefing

Automatic self loading concrete mixer is the combination of concrete mixer truck and concrete batching plant

Detailed

1.6 cubic meter automatic self loading concrete mixer truck

Instruction:

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

Features :

1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.

2. The self loading concrete mixer for sale has easy operation, high working efficiency, high mixing effect.

3. It has independent water supply system, which can ensure the high quality of concrete.

4. It just need one operator to drive, load, and mix raw material while moving it.

Specifications:

Name	Item	Specification
	Net	5500 KG
	Transmission	Full Hydraulic
		4 WD
	Brake	Air Brake
	Chassis	Off-road
	Loader bucket	capacity	0.4m3
		Control	Hydraulic
	Tilt angle	20%
	Speed	High	0-25KM/H
		Low	0-9KM/H
	Mini turning radius	4.5M/R
Engine	Type	Yunnei
	Rated Power/RPM	60KW/2200RPM
	Max.Torque/RPM	360N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Drum capacity	2.2M3
	Mixing capacity	1.6M3
	Bank Angle	16 °
Chute	Swing Angle	≥30°
	Angle control	Hydraulic
Loader control	Hydraulic 4 way stick
Over size	618022702630(3440)mm
