Metric Chain Sprocket Taper Bore Sprocket 08B Chain Sprocket
- US $0.5
1 - 10000 piece
group nameISO 08B Sprockets
-
Min Order1 piece
brand nameCTS-ChinaTransmissionS
model08B Taper Bore Sprocket
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeFri, 05 Dec 2025 21:45:13 GMT
Paramtents
Material Carbon Steel
Color Natural
Surface Treatment Blackening/Galvanizing/Phosphating
Quality Durable Metric Chain Sprocket
Packging & Delivery
Min Order1 piece
Briefing
Detailed

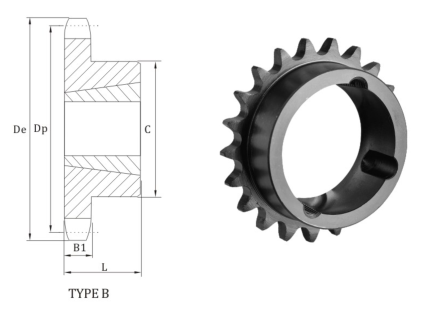

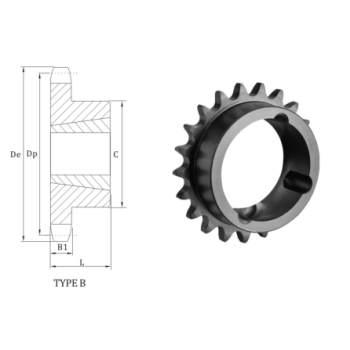

About Taper Bore Chain Sprockets
Taper bore sprockets are an important part of the chain drive and need to be used with a taper lock bush suitable for all roller chains according to the DIN 8187 standard-European B series.
In addition, we also provide taper lock bushings for taper bore sprockets.
If you can't find the chain sprockets you want, please contact us, and we will be happy to assist you.
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.
Features
- High-precision Sprocket
- Durable Sprocket
- Directly interchangeable with other brands
- OEM Sprocket
|
CHAIN SPROCKET
|
mm
|
ROLLER CHAIN
|
mm
|
|
Tooth Width B1
|
7.2
|
Chain Pitch
|
12.7
|
|
Hub Configuration
|
B
|
Roller Dia
|
8.51
|
Tooth Width B2 | 21 | Chain Number | 08 |
Tooth Width B3 | 34.9 | Number of Chain Rows | 1-2-3 |
Number of Teeth | 8 - 125 | European Standard sprocket | |
Hardened Teeth | Up to customer | ||
Bore Type | Taper Bore | ||
Min bore size | 10 | Max bore size | 25 |
|
Tooth radius r
|
13 mm
|
|
Radius width C
|
1.3 mm
|
|
Tooth width h1
|
7.2 mm
|
