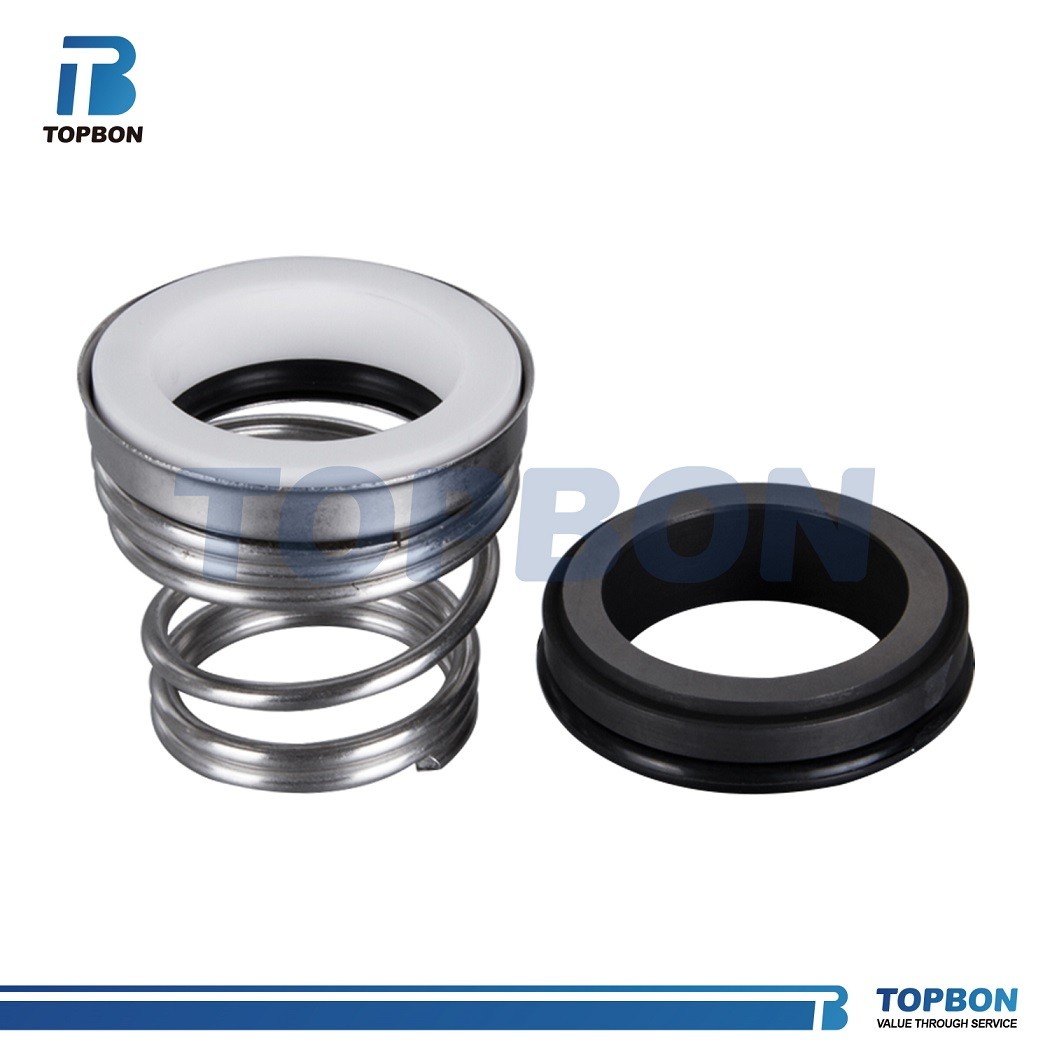

Mechanical Seal TB155/155A replace Burgmann BT-FN
group nameO-ring Mechanical Seal
-
Min Order1 piece
brand nameTOPBON Mechanical Seal Manufacturer
modelTB155/155A
payment methodT/T
-
update timeSat, 04 May 2024 06:15:35 GMT
Paramtents
Temperature -20℃-150℃
Speed ≦10m/s
Pressure ≦1.0MPA
Rotary Ring Material CER/SIC/TC
Stationary Ring Material CAR/SIC/TC
O-Ring Material VIT/NBR/EPDM
Spring & Metal Parts SUS304/SUS316
Application Clean Water，Sewage Water，Oil
Packging & Delivery
Min Order1 piece
Briefing
TB155/155A O-RING Mechanical Seal
Replacement to:
Burgmann BT-FN mechanical seal
Replacement to:
Burgmann BT-FN mechanical seal
Detailed
Mechanical seal TB155/155A
Replacement to:
Burgmann BT-FN
Product details
SIZE
|
Size/ Metric |
d | D3 | D2 | D1 | L1 | L2 | L3 |
155A
|
Size
|
D3d | DDD3 |
D2
|
L1LD1 | L2LL1 | LL2L2 | L3LL3 |
|
10
|
10 | 20 | 14.0 | 18.1 | 15 | 5.5 | 7.0 |
10
|
10 | 20 |
17
|
21 | 15 | 7 | 8.5 | |
|
11
|
11 | 22 | 16.5 | 20.6 | 18 | 5.5 | 7.0 |
12
|
12 | 22 |
19
|
23 | 18 | 7 | 8.5 | |
|
12
|
12 | 22 | 16.5 | 20.6 | 18 | 5.5 | 7.0 |
14
|
14 | 25 |
21
|
25 | 22 | 7 | 8.5 | |
|
13
|
13 | 25 | 19.0 | 23.1 | 22 | 6.0 | 7.5 |
16
|
16 | 29 |
23
|
27 | 23 | 7 | 8.5 | |
|
14
|
14 | 25 | 19.0 | 23.1 | 22 | 6.0 | 7.5 |
18
|
18 | 33 |
27
|
33 | 24 | 10 | 12.0 | |
|
15
|
15 | 29 | 21.0 | 26.9 | 22 | 7.0 | 9.2 |
20
|
20 | 33 |
29
|
35 | 25 | 10 | 12.0 | |
|
16
|
16 | 29 | 21.0 | 26.9 | 23 | 7.0 | 9.2 |
22
|
22 | 38 |
31
|
37 | 25 | 10 | 12.0 | |
|
17
|
17 | 29 | 21.0 | 26.9 | 23 | 7.0 | 9.2 |
24
|
24 | 38 |
33
|
39 | 27 | 10 | 12.0 | |
|
18
|
18 | 33 | 25.0 | 30.9 | 24 | 8.0 | 10.0 |
25
|
25 | 40 |
34
|
40 | 27 | 10 | 12.0 | |
|
19
|
19 | 33 | 25.0 | 30.9 | 25 | 8.0 | 10.0 |
28
|
28 | 46 |
37
|
43 | 29 | 10 | 12.0 | |
|
20
|
20 | 33 | 25.0 | 30.9 | 25 | 8.0 | 10.0 |
30
|
30 | 46 |
39
|
45 | 30 | 10 | 12.0 | |
|
21
|
21 | 38 | 30.0 | 35.4 | 25 | 8.0 | 10.0 |
32
|
32 | 46 |
42
|
48 | 30 | 10 | 11.5 | |
|
22
|
22 | 38 | 30.0 | 35.4 | 25 | 8.0 | 10.0 |
33
|
33 | 48 |
42
|
48 | 39 | 10 | 11.5 | |
23 | 23 | 38 | 30.0 | 35.4 | 27 | 8.0 | 10.0 | 35 | 35 | 50 | 44 | 50 | 39 | 10 | 11.5 | |
24 | 24 | 38 | 30.0 | 35.4 | 27 | 8.0 | 10.0 | 38 | 38 | 56 | 49 | 58 | 42.2 | 13 | 15.0 | |
25 | 25 | 40 | 33.0 | 38.2 | 27 | 8.5 | 10.0 | 40 | 40 | 58 | 51 | 58 | 42.2 | 13 | 15.0 | |
28 | 28 | 46 | 38.0 | 43.3 | 29 | 9.0 | 11.0 | |||||||||
29 | 29 | 46 | 38.0 | 43.3 | 30 | 9.0 | 11.0 | |||||||||
30 | 30 | 46 | 38.0 | 43.3 | 30 | 9.0 | 11.0 | |||||||||
32 | 32 | 46 | 38.0 | 43.3 | 30 | 9.0 | 11.0 | |||||||||
33 | 33 | 48 | 45.0 | 53.5 | 39 | 11.5 | 13.0 | |||||||||
35 | 35 | 50 | 45.0 | 53.5 | 39 | 11.5 | 13.0 | |||||||||
38 | 38 | 56 | 52.0 | 60.5 | 39 | 11.5 | 13.0 | |||||||||
40 | 40 | 58 | 52.0 | 60.5 | 39 | 11.5 | 13.0 |
